Universal magnet kit - DAA

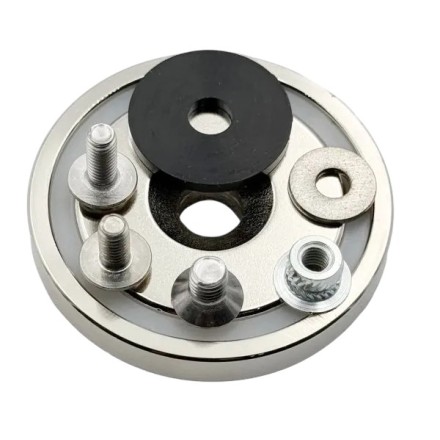

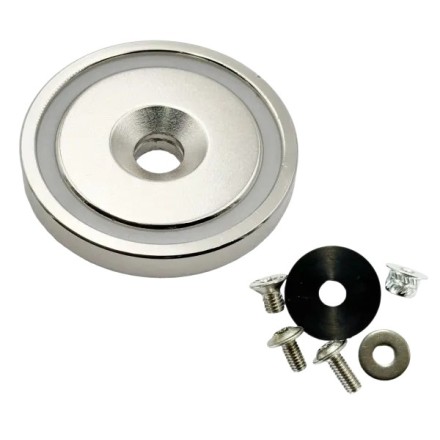

This kit includes the following parts:

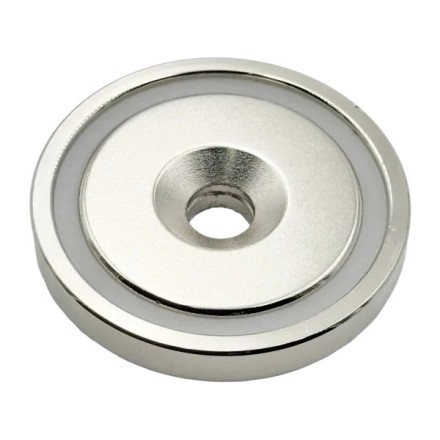

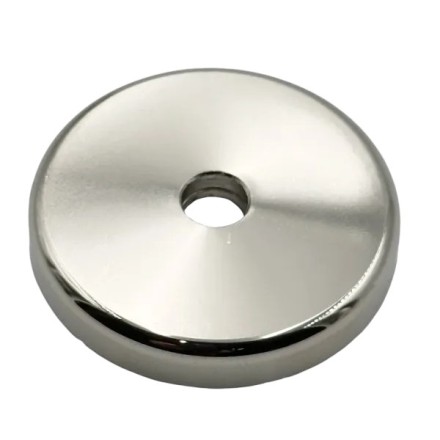

• 48mm N52 pot magnet

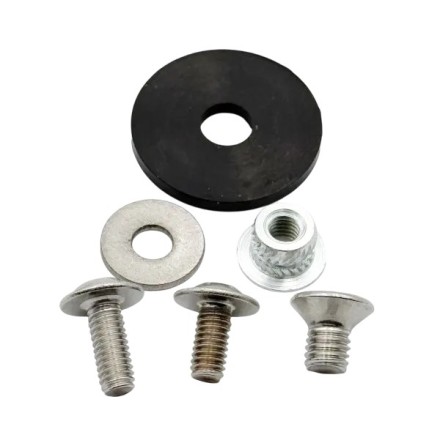

• Rubber Washer 22x2mm
• Steel washer 12x0.8mm
• M5x8mm counter sunk screw
• M4x8mm Flat head wide flange screw
• M4x10mm Flat head wide flange screw

Please note that not all parts are required for every type of mag pouch.

Assembly instructions for each pouch model:

DAA X-Ray Aluminum Pouches

• Use the M4 screw to attach the magnet. (either the 8mm or the 10mm, whichever fits best)
• Place the rubber washer between the pouch body and the magnet.
• Notes:   You can apply a drop of Loctite. Do not overtighten.

DAA X-Ray Polymer Pouches and Racer Gen-2 Pouches

• Use the M4 screw to attach the magnet. (either the 8mm or the 10mm, whichever fits best)
• Place the steel washer between the pouch body and the magnet. This prevents the insert from pulling out.
• Notes:   You can apply a drop of Loctite. Do not overtighten.

DAA XiP and DAA Racer Gen-1 Plastic Pouches

(pouches without a pre-drilled magnet mounting hole or thread)

• Drill a centered hole 1.4 cm (0.55”) from the bottom edge using a 6.7–6.9 mm (17/64”) bit. (A 6.5 mm (1/4”) bit can also be used, though the fit will be tighter.)
• Hold the threaded insert inside the pouch, aligned over the drilled hole.
• Place the magnet directly over the hole.
• Thread the M4 screw through the magnet into the insert.
• Tighten carefully—the screw will pull the insert into the plastic until the flange is snug against the inner wall. Do not overtighten. Snug is sufficient.
• Remove the screw, insert the rubber washer between the pouch and the magnet, then retighten. The washer prevents rotation and reduces the chance of the insert pulling out from overtightening.
• Notes:   You can apply a drop of Loctite. Do not overtighten.

DAA Alpha-XI, and older discontinued DAA Alpha-X and DAA Race Master Aluminum Pouches

• Use the M5x8mm screw to attach the magnet.
• Place the rubber washer between the pouch body and the magnet.
• Notes:   You can apply a drop of Loctite. Do not overtighten.
