Thermal imaging scope for rifle, magnification 3x-12x, mod. TU425SE 3.0 - Guide Outdoor

The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, longrange solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.

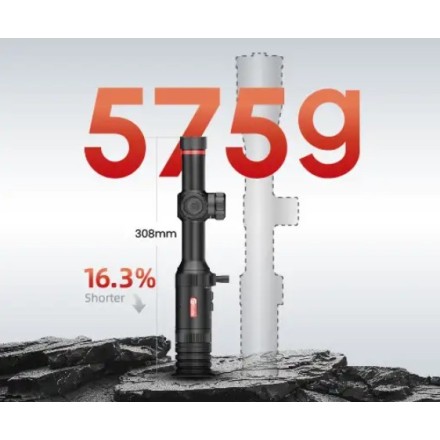

By adopting a LPVO style design, the TU SE 3.0 Series revolutionarily combines ultra-compact housing with advanced thermal technology, providing a superior size and weight experience compared to traditional scopes.

Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.

The innovative shutterless 3.0 technology eliminates the clicking sound and image freezing, ensuring uninterrupted real-time footage during actual hunts, in case any shots are lost or missed during calibration. Note: The shutter module has been retained to ensure high image quality during startup and under significant temperature variations.

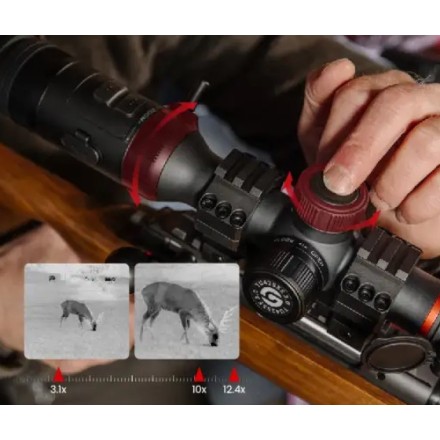

After rounds of field testing, we evaluate the design features based on hunters’ feedback, adjusting and refining them to meet user habits. The focus wheel, zoom lever and button layouts are crafted with ergonomic detail for intuitive control.

Considering the harsh environment in the field, the scope must be sufficiently durable and sturdy. It features shock resistance up to 6000J to withstand recoil and an IP68 waterproof rating.

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 20mK
• Frame rate: 50 Hz

Lens

• Objective lens: 25mm, F1.0
• Field of view: 10.3°×6.2°
• FOV m@100m: 18×11
• Magnification: 3.1x~12.4x
• Detection range: 1300m/1400yd
• Focus: Manual

Display

• Display type: 0.49'' AMOLED 1920×1080
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x

Hardware

• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube diameter: Standard 30 mm
• Others: Microphone, Bluetooth

System

• Recording function: Photo/Video (Audio recording included)
• Memory capacity: 32GB

Power

• Battery type: 18500 ×1 Battery (Built-in) and 18650 ×2 Battery (External)
• Operating time: 12 hours

Environmental

• Operating temp.: -20°C to 50°C / -4°F to +122°F
• Shock: 6000J/1200G
• Encapsulation: IP68

Physical

• Weight (g/oz): 575/20.28
• Size (mm/in): 311×89×76/12.24×3.50×2.99
• Standard: Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger,  5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
• Optional: Bluetooth Remote Control, Laser Rangefinder, 18650 Battery
