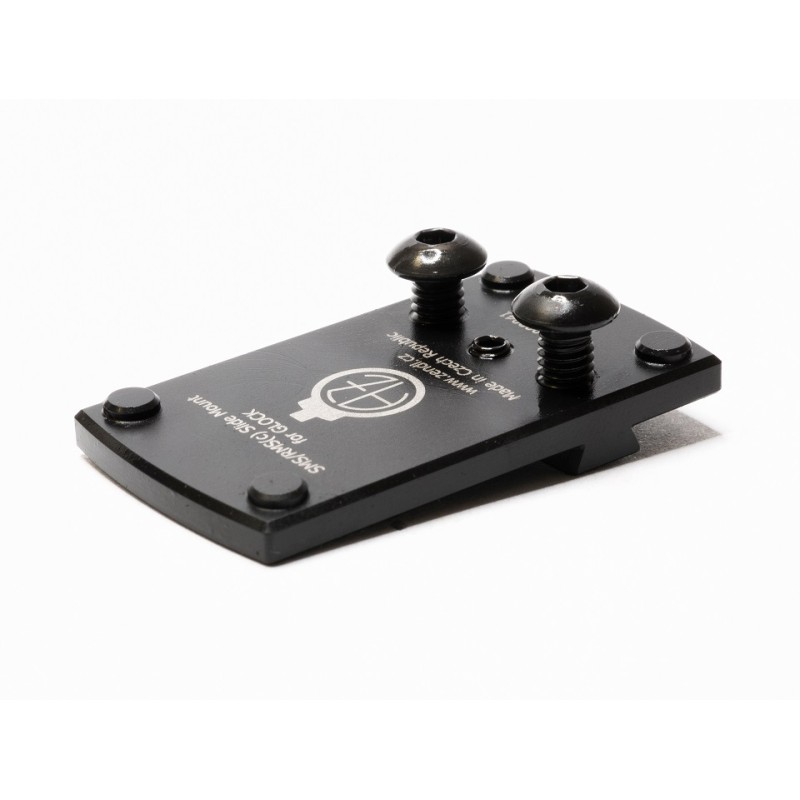

Glock Red Dot Mount for Red Dot Shield SMS / RMS / RMSc - Zendl

Simply replace standard sights with the SHIELD SIGHTS SMS/RMS(c) collimator sight. No modifications are required and you can revert to the original sights at any time.

The assembly is intended for:

• Glock 17, Glock 17L, Glock 19, Glock 22, Glock 23, Glock 24, Glock 26, Glock 27, Glock 33
• Glock 34, Glock 35, Glock 38, Glock 39, Glock 43, Glock 43X, Glock 48

- remove the original rear sight*

- install the collimator assembly in the dovetail by tapping it with a suitable tool

- tighten the locking screw in the center of the assembly

- place the collimator on the upper surface of the assembly and gently tighten the fixing screws

(we recommend inserting a strip of paper between the assembly and the collimator. This will facilitate subsequent disassembly and in case , by choosing to use Loctite 243 glue and screws, you will limit the possibility of glue transfer from the threads to the collimator)

- tighten the fixing screws

*use the designated tool to knock out the original sights, or give the mounted gun to a gunsmith

Technical details:

• Length: 41.3mm
• Width: 23mm
• Weight: 30g including screws
• Made of hardened steel
