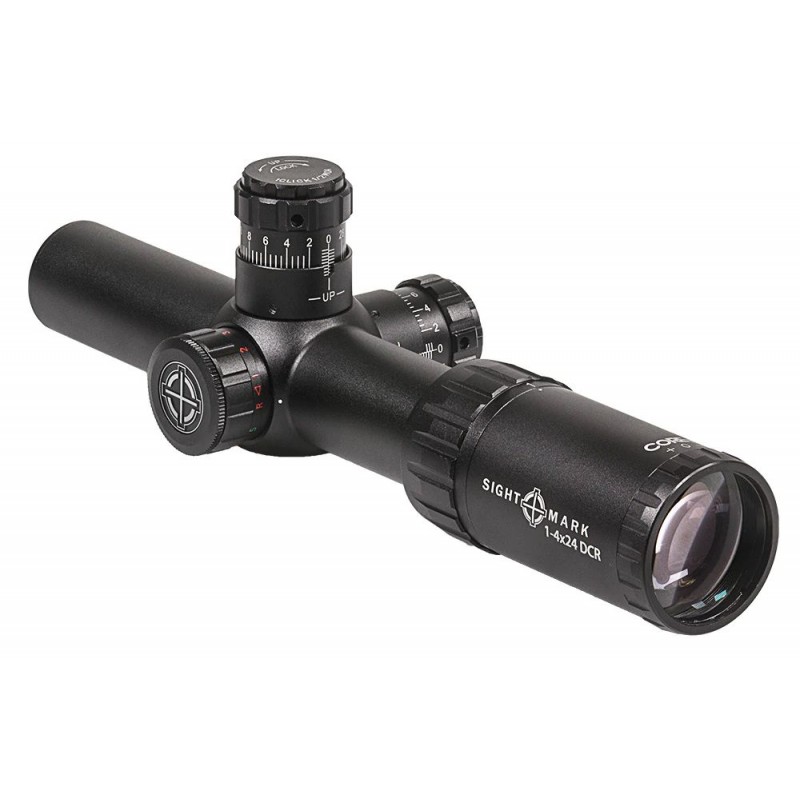

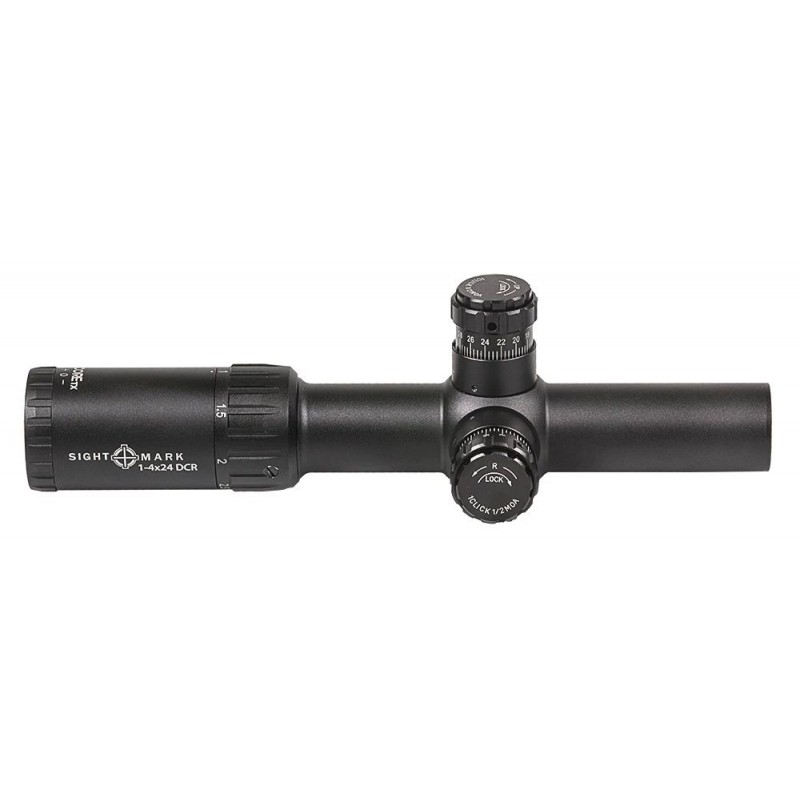

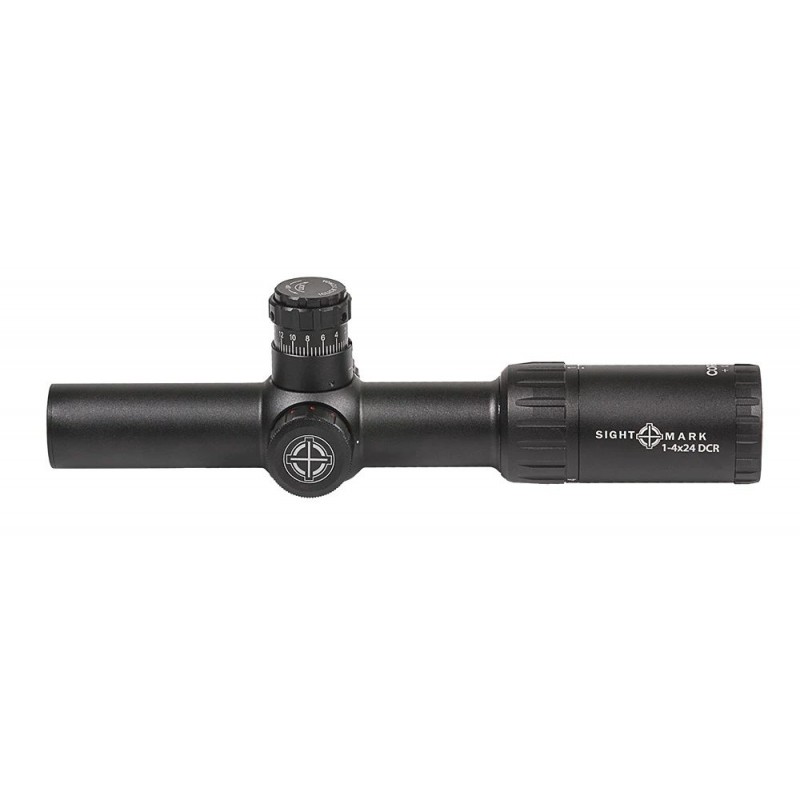

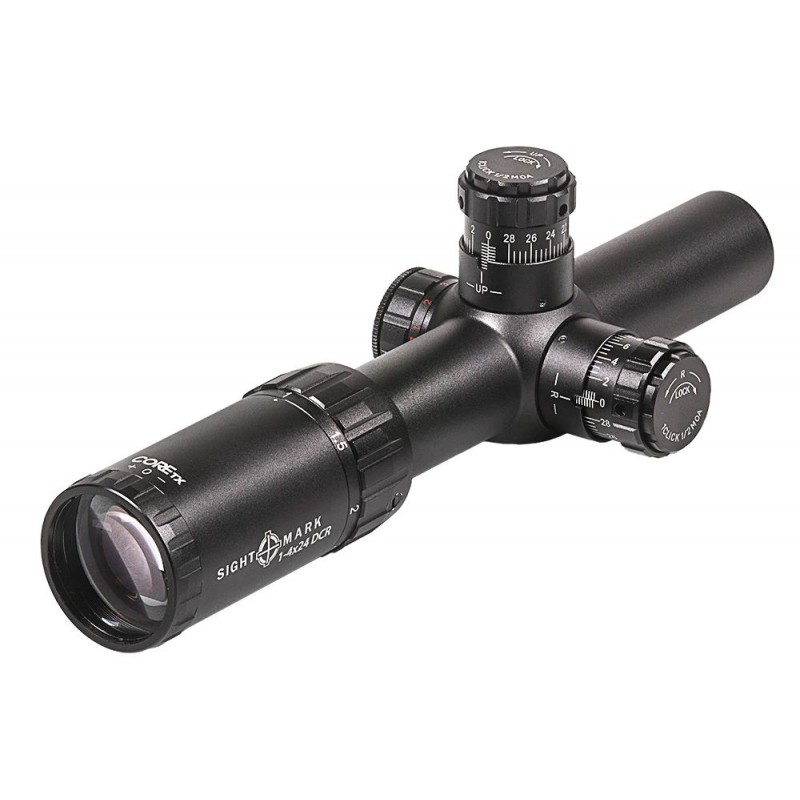

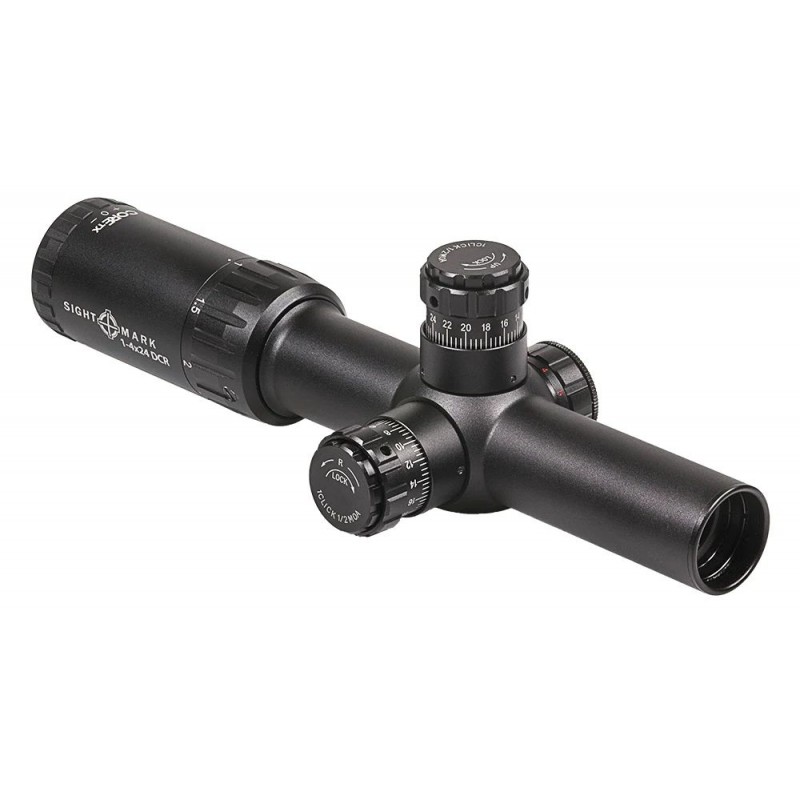

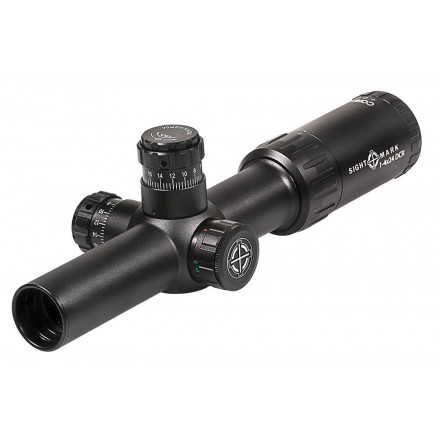

Sightmark Core TX riflescopes use fully multi-coated optics to provide optimal light transmission in a variety of conditions. Etched glass reticles, in red or green, are illuminated to deliver optimal shot placement and are durable to withstand years of shooting. The Core TX riflescopes feature exposed, lockable turrets which help maintain a consistent zero. Turrets are quick and easy to adjust to compensate for bullet drop and windage on the fly. The Core TX 1-4x24DCR is housed in a durable 30mm tube, built from aircraft grade aluminum. This scope features a duplex BDC reticle and is calibrated for .223 and .308 ammo.

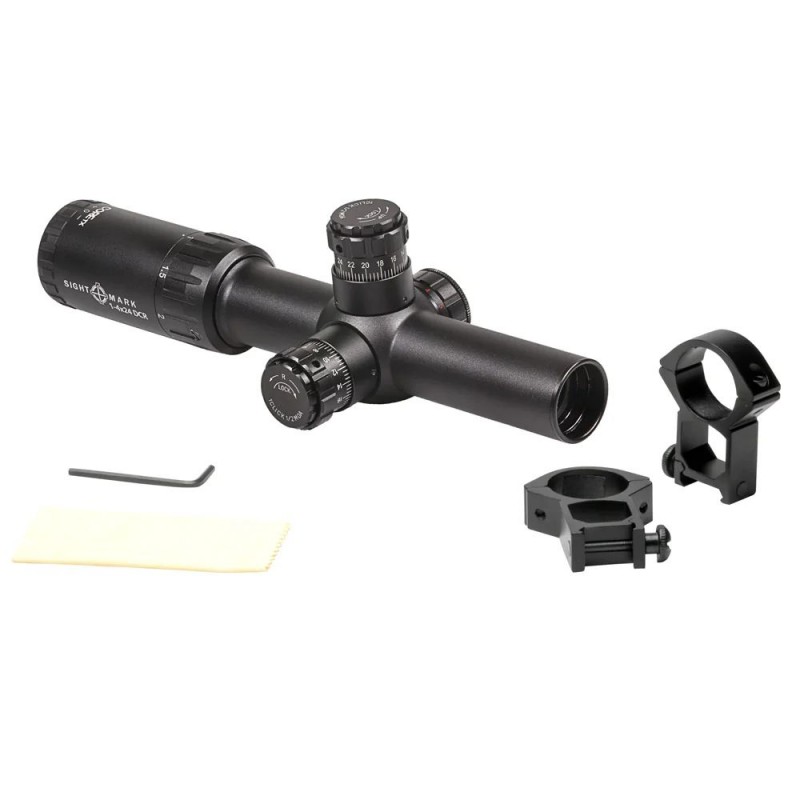

Included in Package
- Flip up lens covers
- 30mm scope rings
- CR2032 battery
Batteries Used
Product Downloads
Features

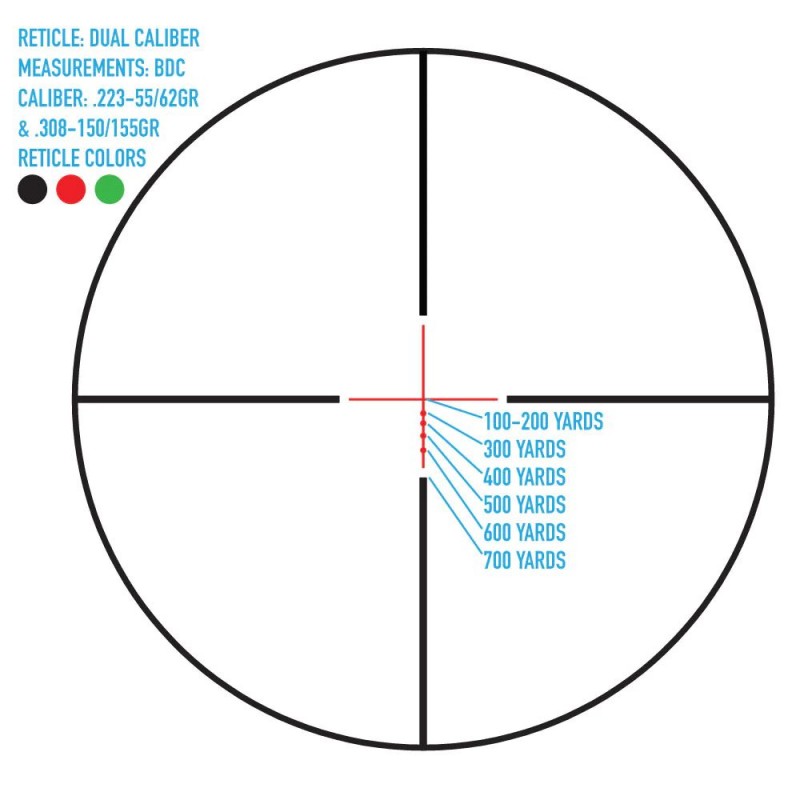

- BDC reticle calibrated for .223 and .308 ammo
- Exposed, lockable turrets
- Second focal plane reticle
- Red/Green illuminated reticle
- Single-piece, 30mm tube
- Aircraft grade aluminum
- Hard anodized finish
- Shockproof, fogproof, waterproof
- Fully multi-coated optics
| Reticle, Type |

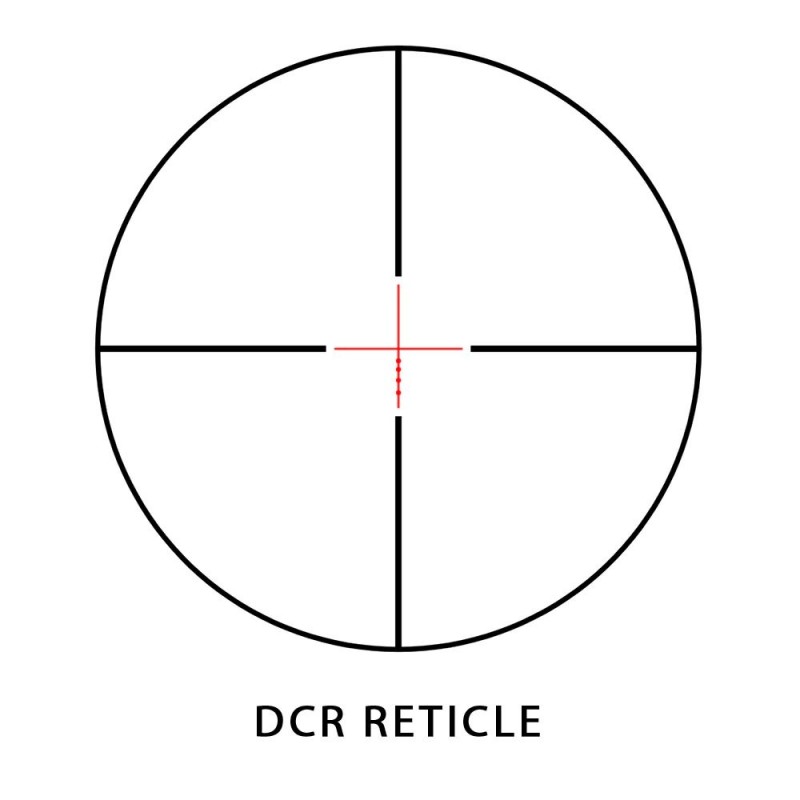

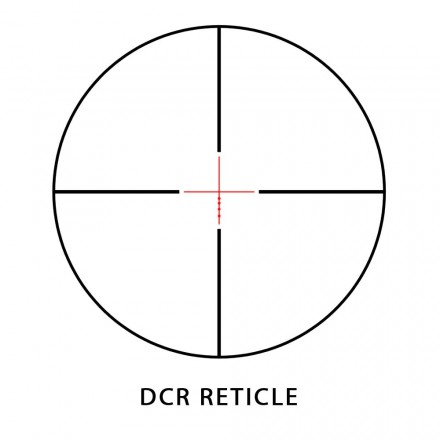

DCR- Dual Caliber Reticle |
|---|
| Reticle |
etched glass |
|---|
| Reticle, Color |
Red and green |
|---|
| Reticle, Illuminated |
Yes |
|---|
| Reticle Brightness Setting |
0-5 |
|---|
| Finish/Color |
Matte black |
|---|
| Magnification |
1-4 x |
|---|
| Diameter, Objective Lens |
24 mm |
|---|
| Diameter, Eyepiece |
1.65 / 42 in/mm |
|---|
| Diameter, Exit Pupil |
11 - 6 mm |
|---|
| Eye Relief |
4 - 3.7 / 101.6 - 94 in/mm |
|---|
| Field of View |
32.04 - 8.03 m @ 100m |
|---|
| Field of View |
32.04 - 8.03 m @ 100m |
|---|
| Diopter Adjustment |
+2 to -2 + / - |
|---|
| Diameter, Tube |
30 / 1.18 mm / in |
|---|
| Parallax Setting |
100 yds |
|---|
| MOA Adjustment |
1/2 MOA |
|---|
| Windage Adjustment |
80 MOA |
|---|
| Elevation Adjustment |
80 MOA |
|---|
| Windage Adjustment |
80 MOA |
|---|
| Maximum Recoil |
.416 Rem |
|---|
| Battery Type |
CR2032 |
|---|
| Battery Life |
100 - 70 hours |
|---|
| Battery Voltage |
3 v |
|---|
| Sunshade |
No |
|---|
| Nitrogen Filled |
yes |
|---|
| Shockproof |
yes |
|---|
| Fog Proof |
yes |
|---|
| Focal Plane |
2nd |
|---|
| IP Standard |
IP67 - waterproof and dustproof |
|---|
| Body Material |
Aluminum |
|---|
| Material, Lens |
glass |
|---|
| Lens Coating |
Fully multi-coated |
|---|
| Operating Temperature |
0 to 120 / -17 to 49 °F / °C |
|---|
| Length |
9.64 / 245 in/mm |
|---|
| Width |
3.2 / 81 in/mm |
|---|
| Height |
2.5 / 63 in/mm |
|---|
| Weight |
17 oz |
|---|
