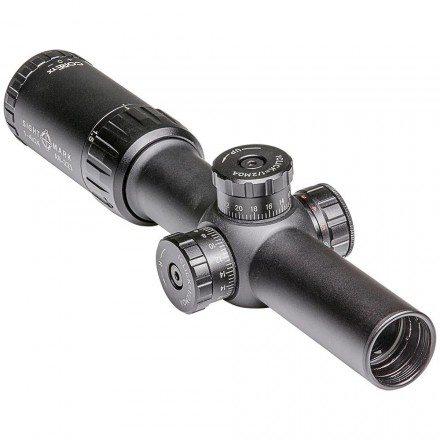

Core TX 1-4x24AR-223 BDC Riflescope - Sightmark

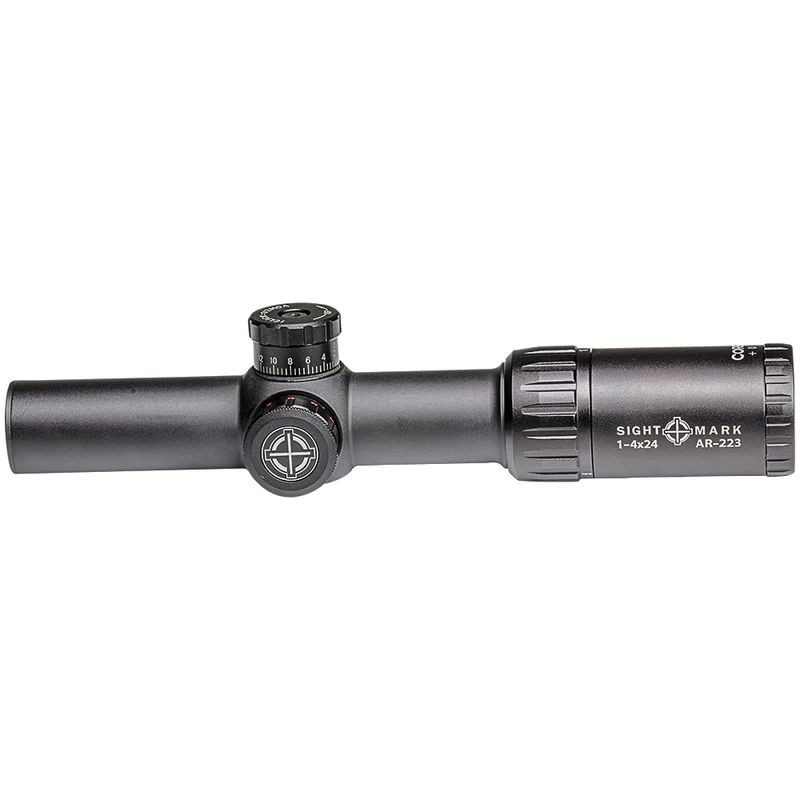

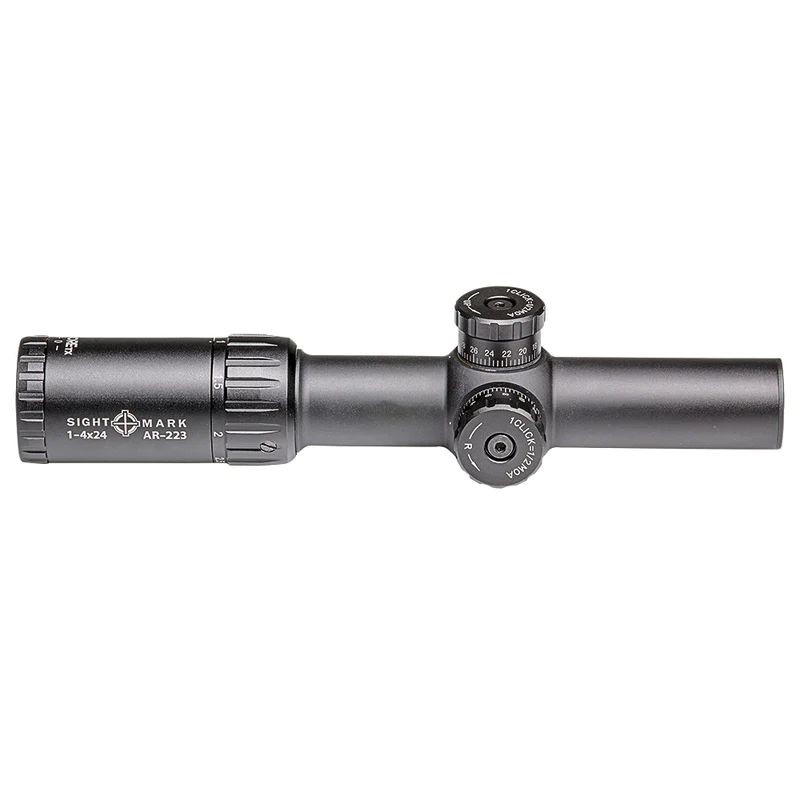

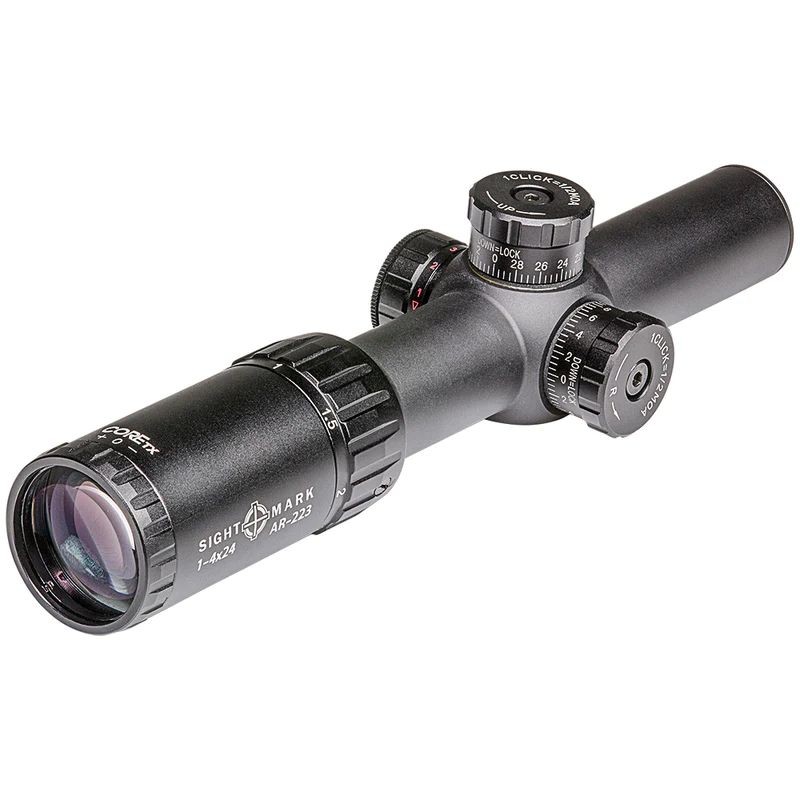

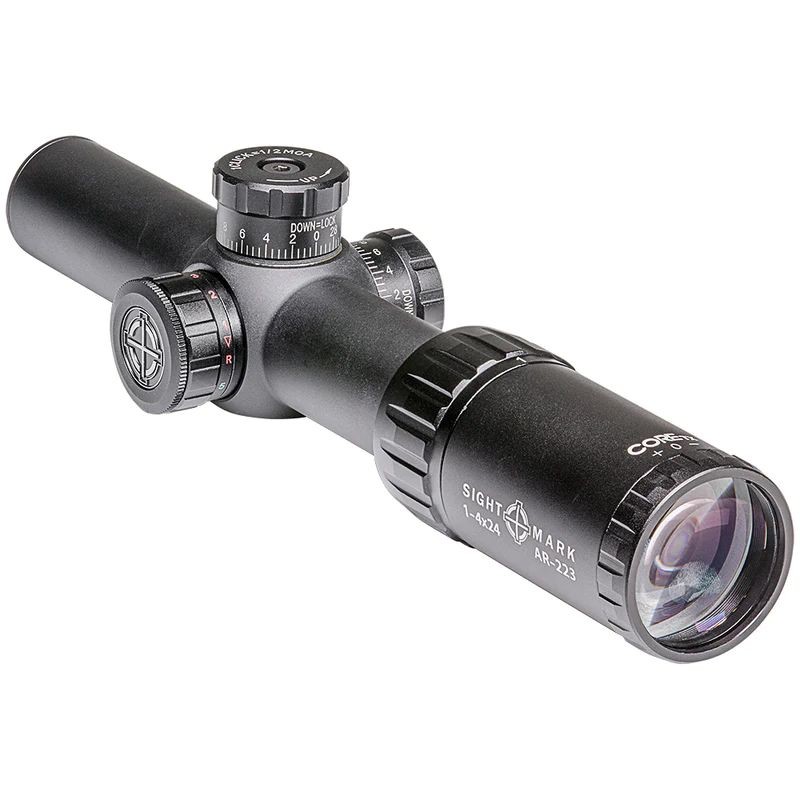

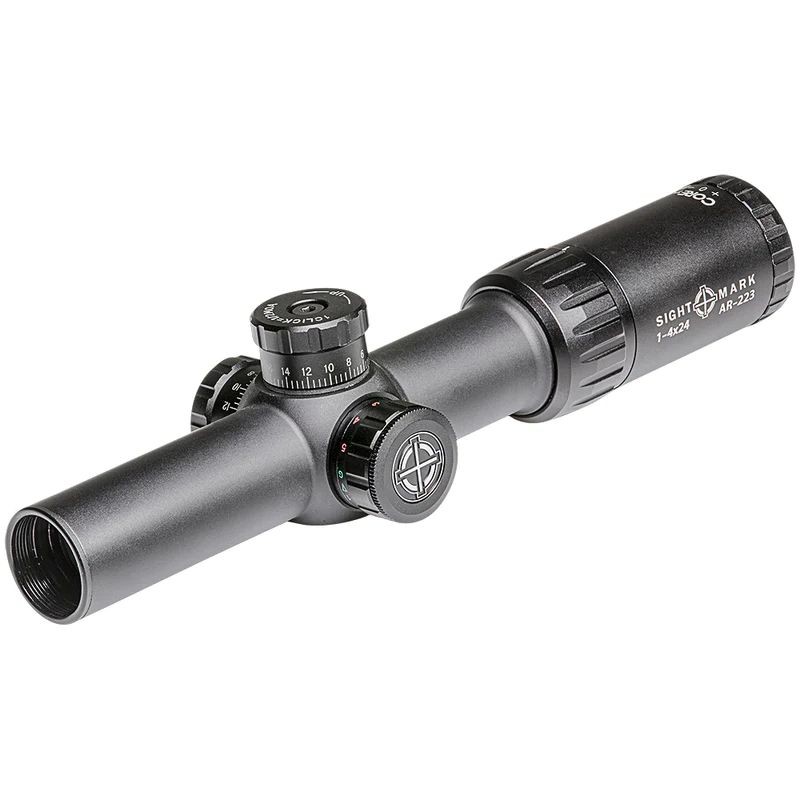

Specifically calibrated for the .223, the Sightmark Core TX 1-4x24 AR-223 Riflescope sets the standard when taking close-medium range shots. Perfect for tactical operations, competition, target shooting or hunting, the Core TX 1-4x24 Riflescope features exposed, lockable turrets helping prevent loss of zero. Variable 1-4x magnification and a fine-etched bullet-drop-compensating (BDC) reticle, including adjustable red and green illumination, makes target acquisition faster and easier, even in low-light conditions. The Core TX 1-4x24 even includes a throw lever for lightning fast, on-the-fly magnification adjustments. Hard-anodized, matte black, 6061-T6 aircraft-grade aluminum construction and advanced, fully multi-coated glass provides the same uncompromising quality and image performance demanding shooters have come to expect from Sightmark. Ready to handle your extreme environments, the Sightmark Core TX 1-4x24 AR-223 Riflescope is nitrogen-filled, waterproof, fogproof, dustproof and shockproof.

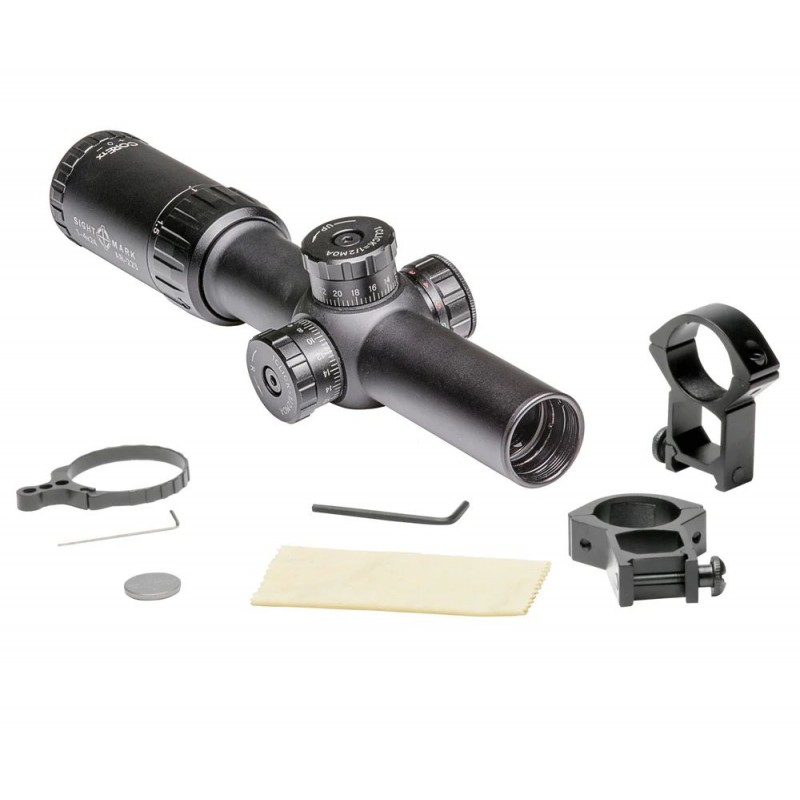

Included in Package
- Flip up lens covers
- Throw lever attachment
- 30mm scope rings
- CR2032 battery
Battery Used
- Type: CR2032
Product Downloads
Features

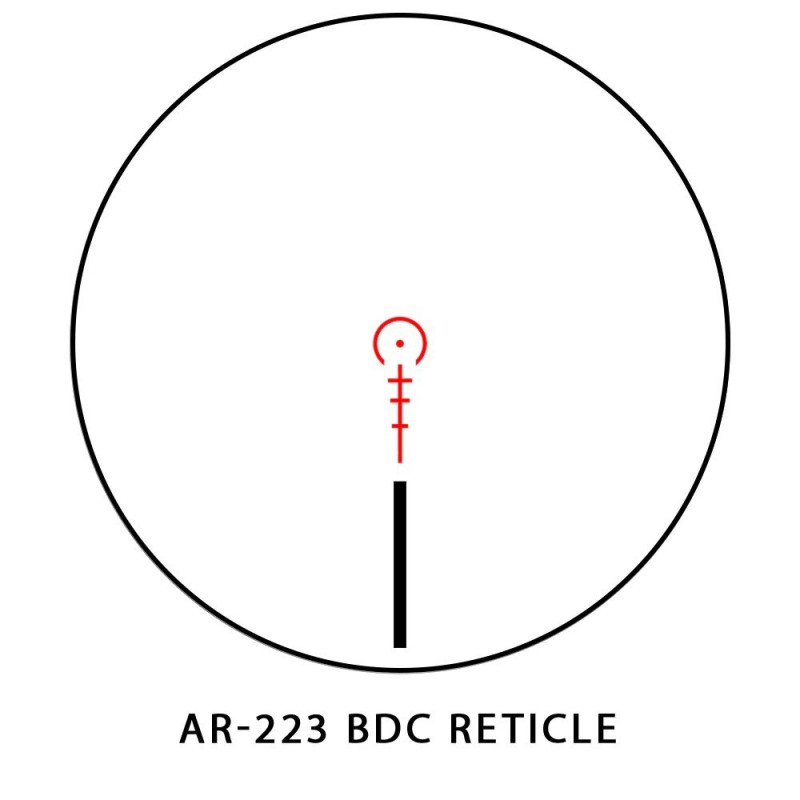

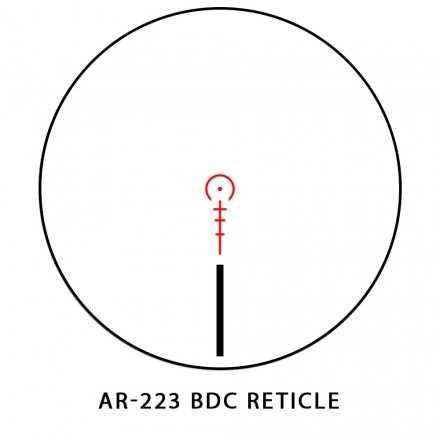

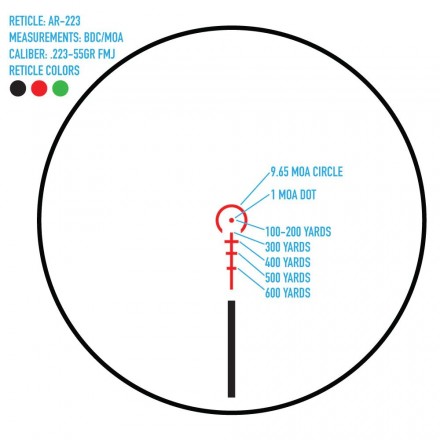

- BDC reticle calibrated for .223 55 grain
- Exposed, pop-up locking turrets
- Second focal plane reticle
- Red/Green illuminated reticle
- Single-piece, 30mm tube
- Aircraft grade aluminum
- Hard anodized finish
- Shockproof, fogproof, waterproof
- Fully multi-coated optics
Reticle, Type | AR-223 |
---|---|
Maximum Recoil | .416 Rem |
Battery Type | CR2032 |
Battery Voltage, V | 3V |
Battery life, hours | 100-70 |
Sunshade | No |
Nitrogen Filled | Yes |
Shockproof | Yes |
Fog Proof | Yes |
Focal Plane | 2nd |
IP Standard | IP 67 -waterproof and dustproof |
Body Material | Aluminum |
Lens Coating | Fully multi-coated |
Operating Temp,?F/?C | 0 to 120 / -17 to 49 |
Length (in/mm) | 9.64/245 |
Width (in/mm) | 2.6/66 |
Height (in/mm) | 2/50 |
Windage & Elevation, Lock | Yes |
Elevation Range of Adjustment | 120 |
Windage Range of Adjustment | 120 |
Reticle | Etched glass |
Reticle, Color | Red/Green |
Illuminated (yes/no) | Yes |
Reticle Brightness Setting | 0-5 |
Finish/Color | Matte black |
Magnification | 1-4x |
Diameter, Objective Lens | 24mm |
Diameter, Eyepiece | 1.65/42 |
Diameter, Exit Pupil | 11-6 |
Eye Relief | 4-3.47/101.6-94 |
Field of view, m@100m | 32.04-8.03 |
Field of view, ft@100yd | 96.1-24.1 |
Diopter Adjustment | +2/-2 |
Diameter, Tube | 30/1.18 |
Parallax Setting | 100 |
MOA Adjustment | 1/2MOA |
Weight, oz | 16.2 |
