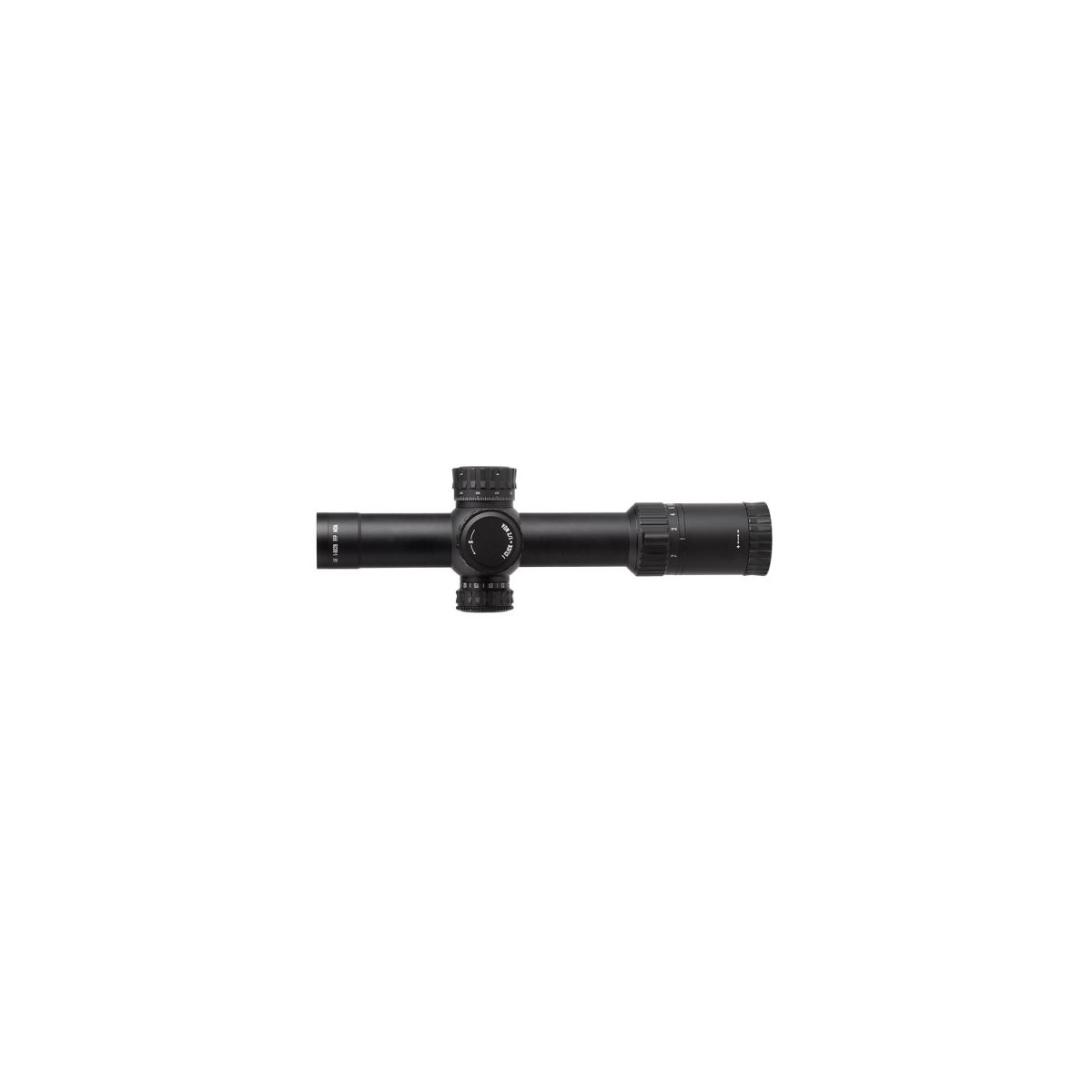

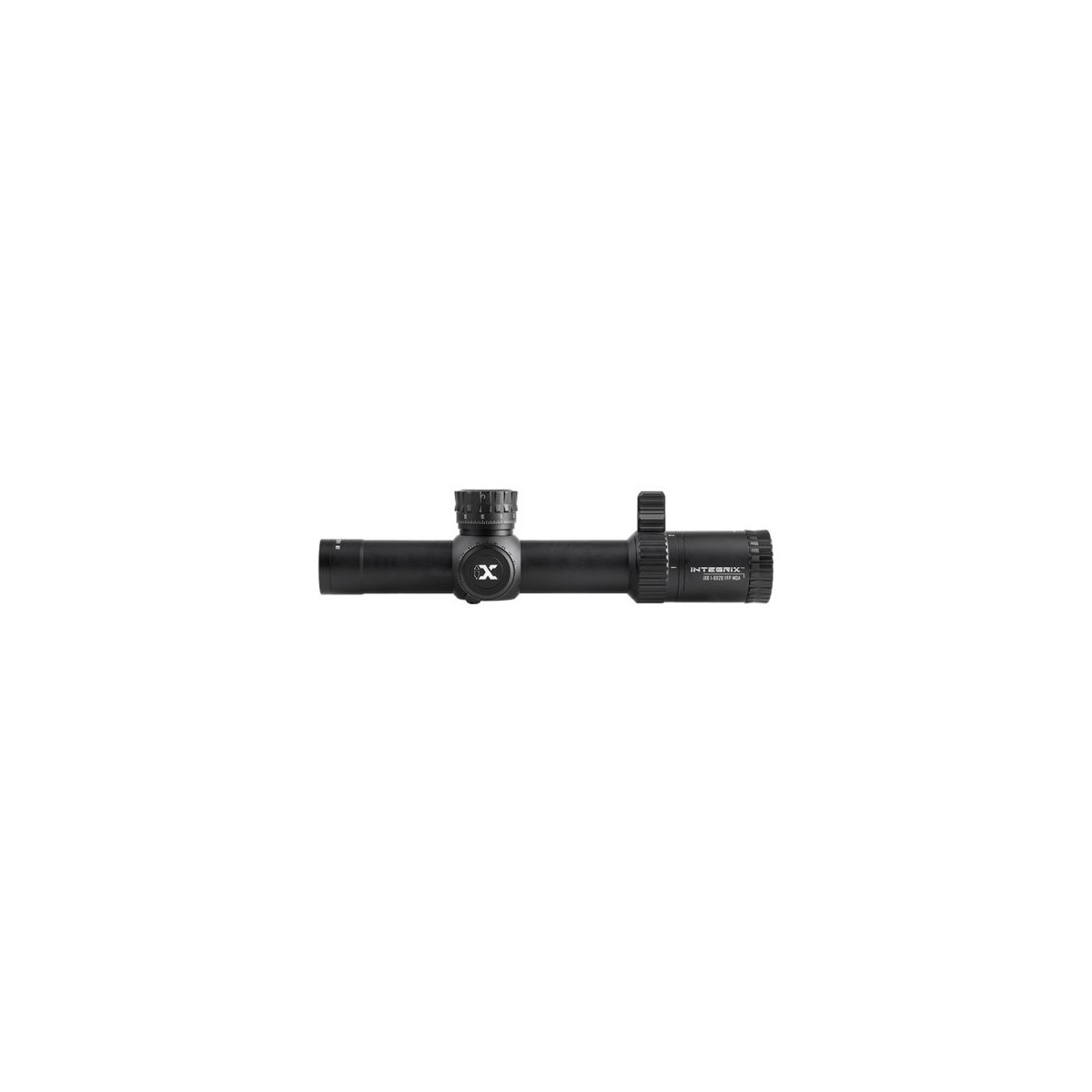

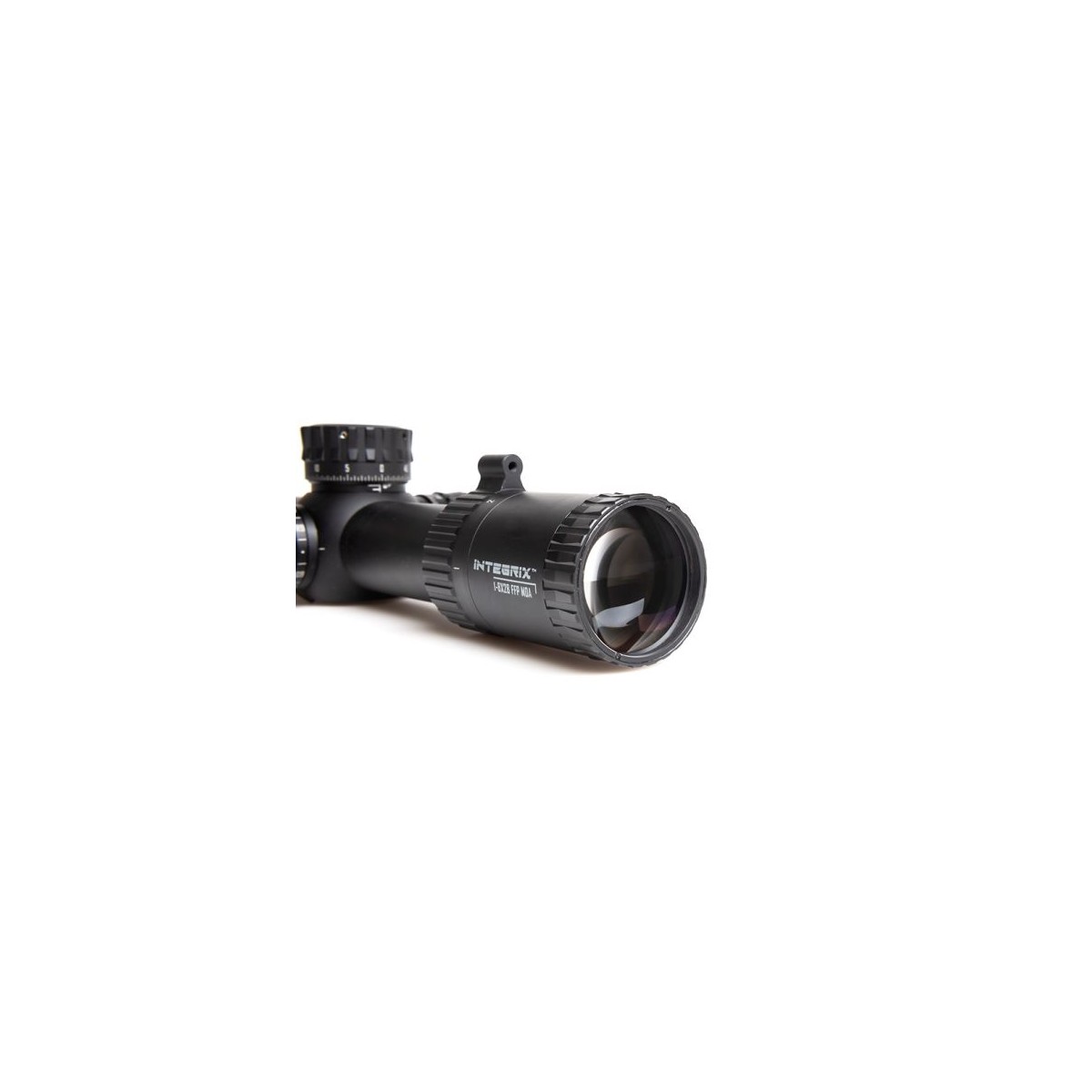

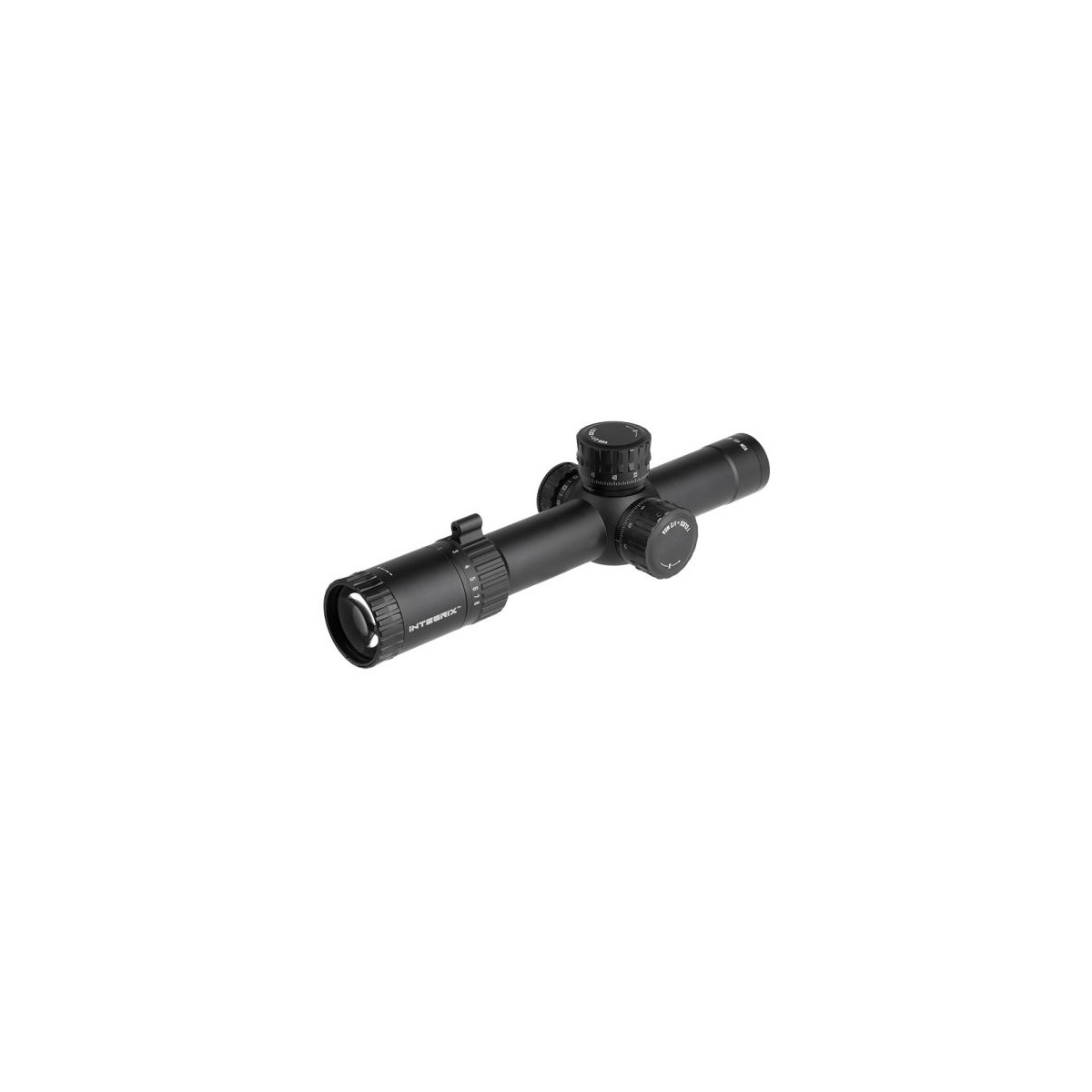

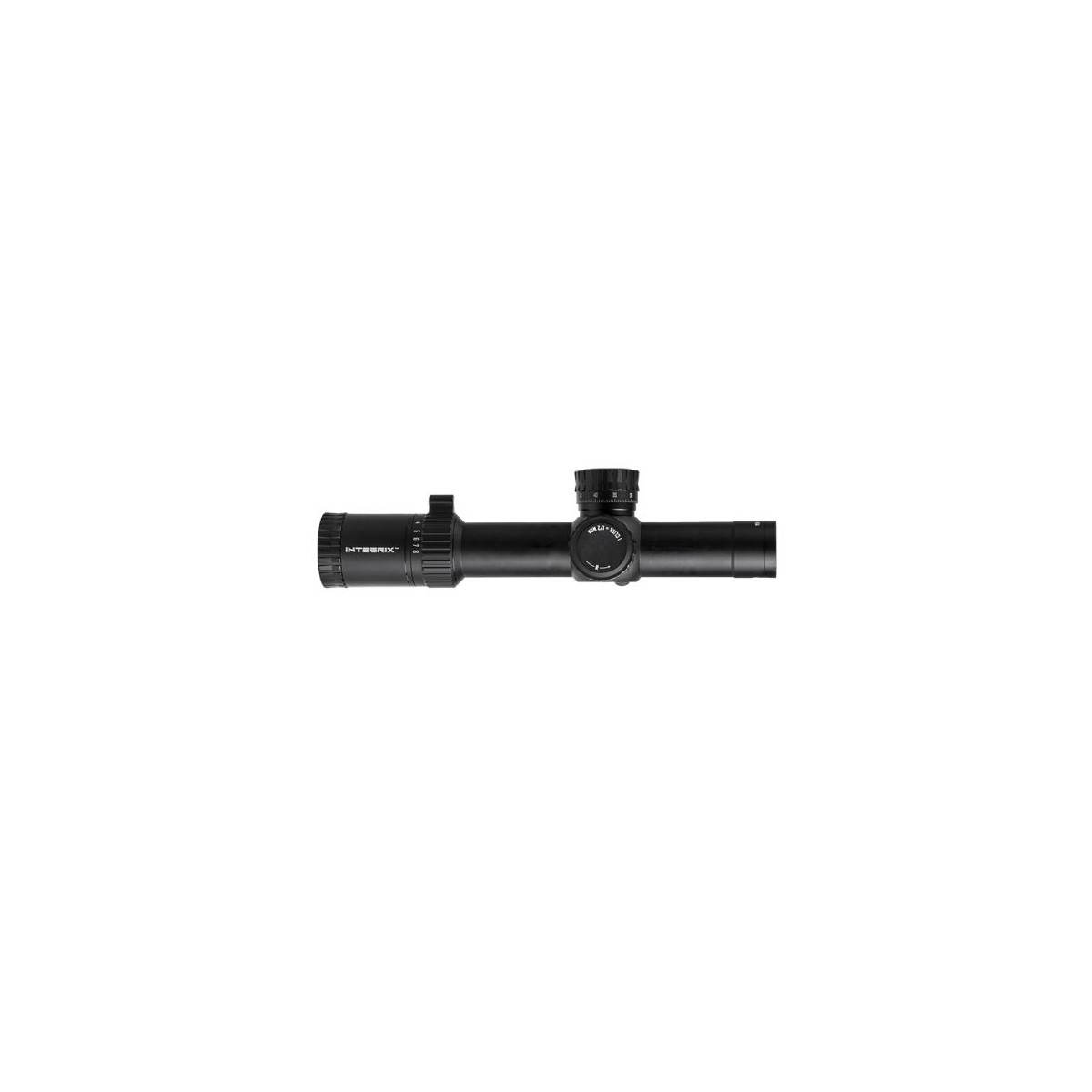

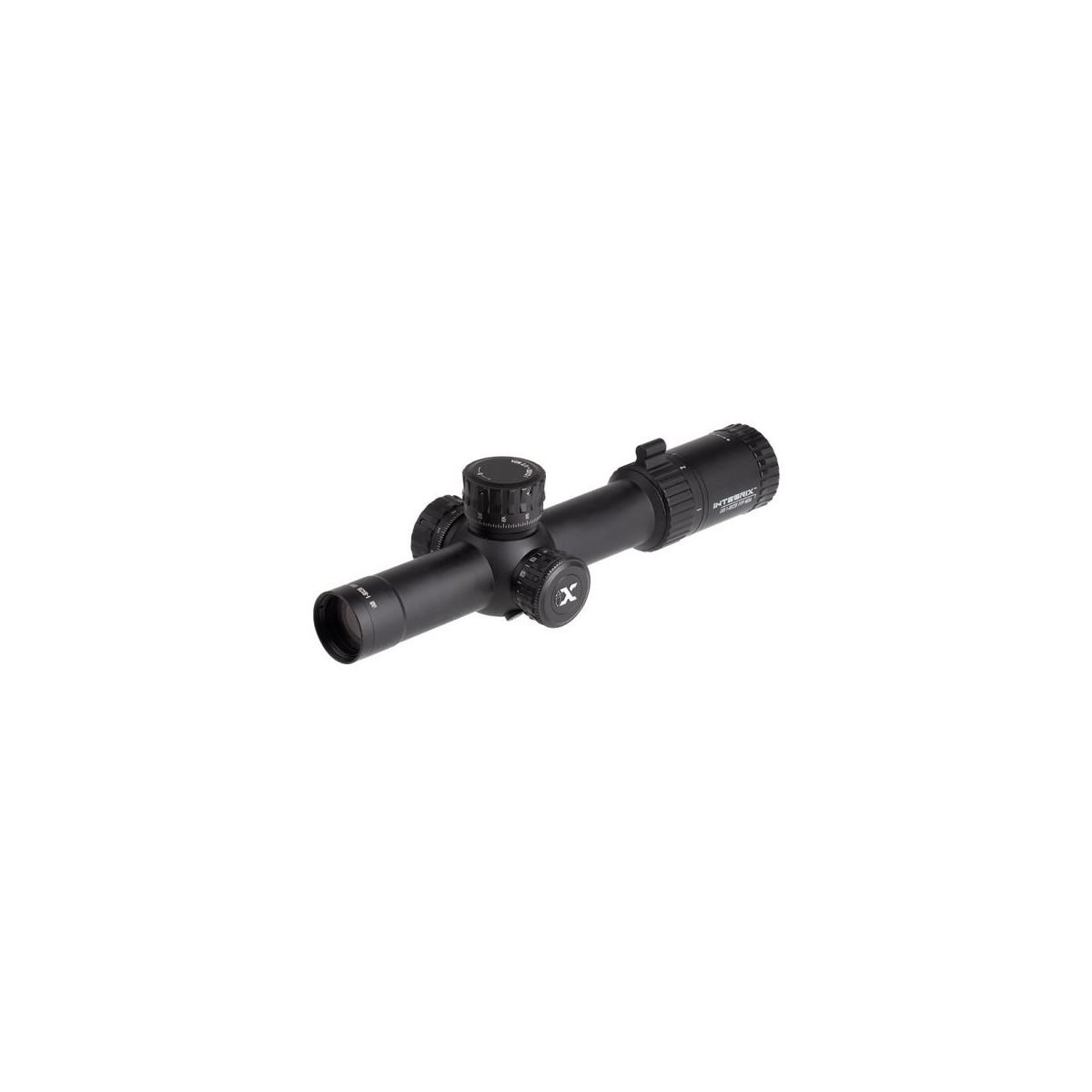

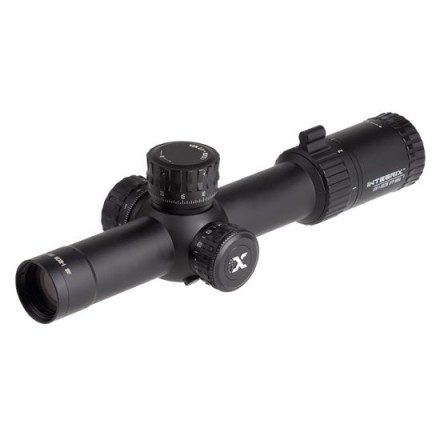

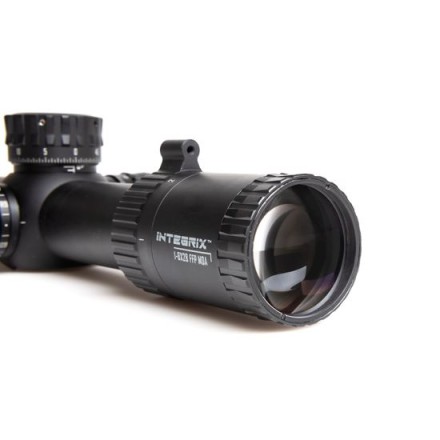

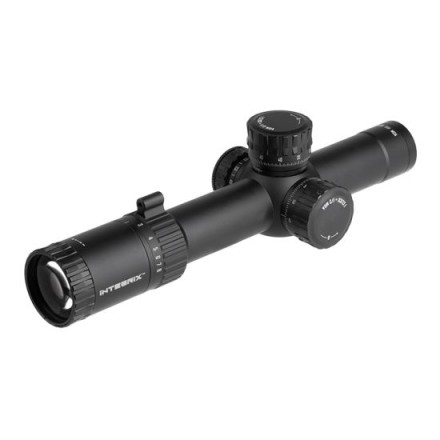

INTEGRIX iX8 1-8X28 34 mm FFP LPVO Scope, A1 MOA - INTEGRIX

Individually Centration Tested German and Japanese Glass, Concentric Tested Post Assembly

Multi-Coated Lenses for Glare, Reflection, and Scratch Resistance

Low Aberration Optimized Image Quality with Over a 92% Light Transmittance

Edge to Edge Sharpness, High Contrast, and High-Resolution Standard

Reliable Adverse Temperature and Environmental Performance with -40°F (-40°C) to 160°F (71°C) Operational Range and IPX7 Waterproof Rating

Rated, at Minimum, for .338 LAPUA Magnum

Red and Green Reticle Illumination with 10 Brightness Intensity Settings

12 Hour Automatic Shutoff

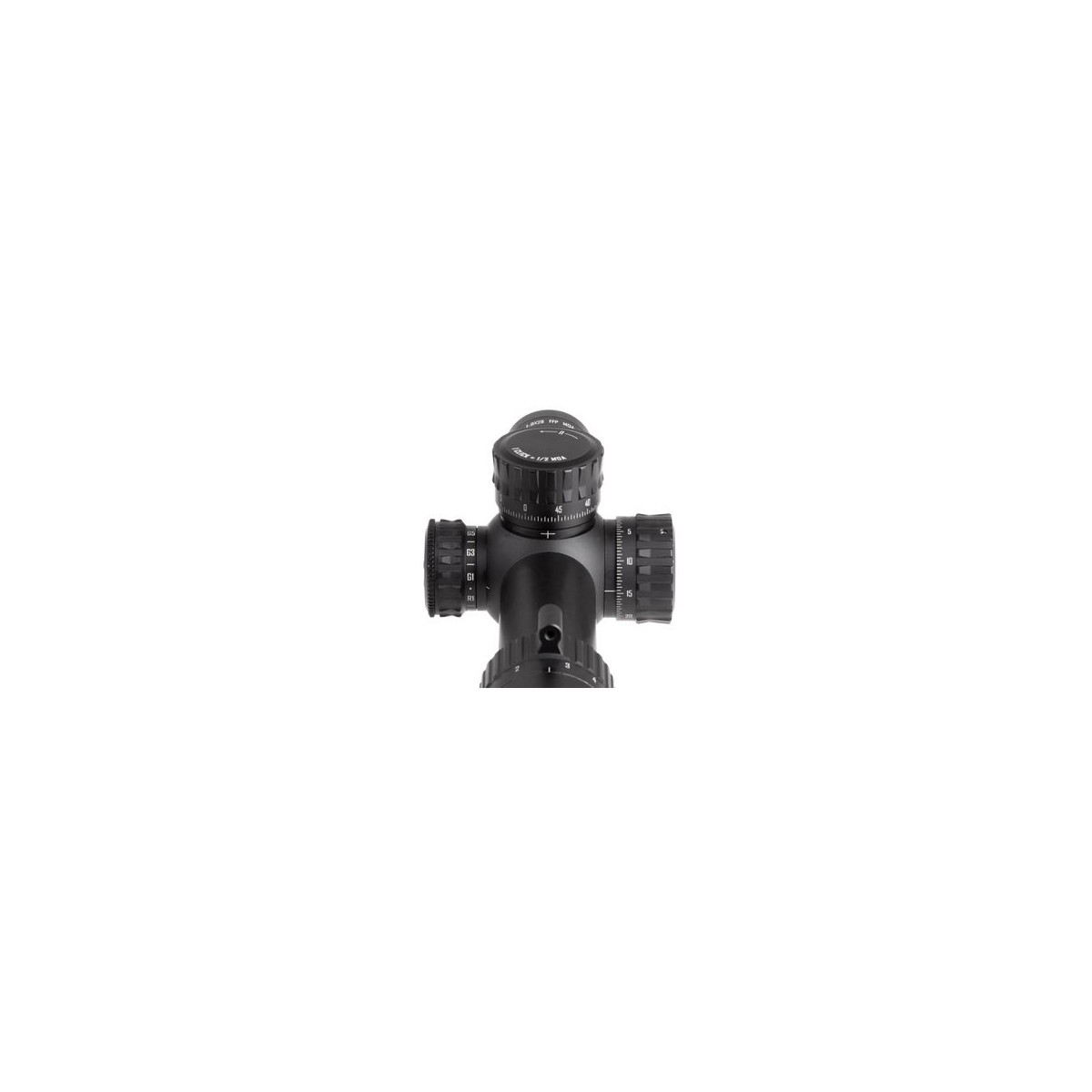

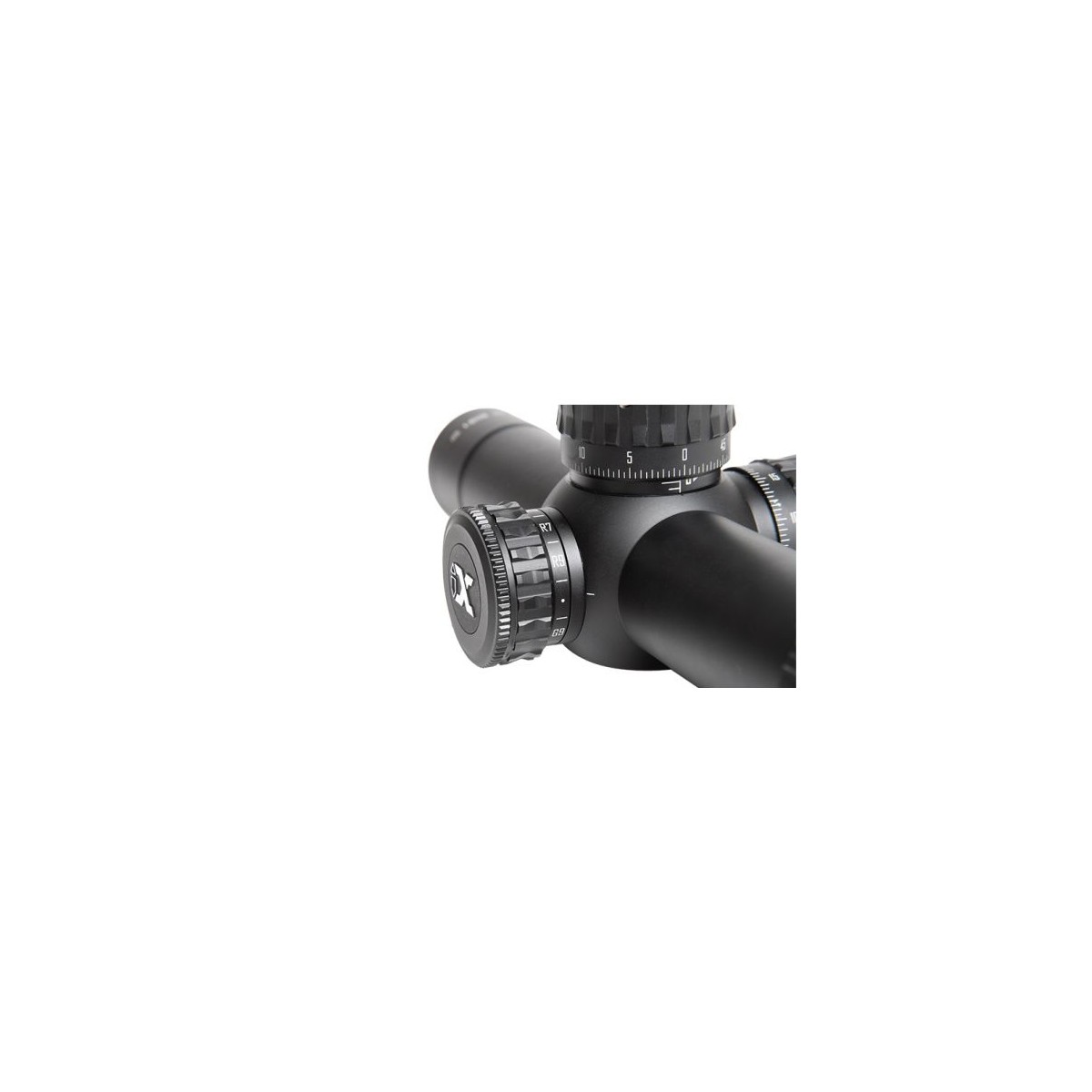

Intuitive Lockable and Zero Resettable Windage and Elevation Turrets, Serrated and Oversized for Glove Use

Serrated Power Ring and Rear Adjustable Eyepiece Diopter

Make Transitioning Across Magnification Range Effortless with Included Oversized Throw Lever

Accessories included

• Throw Lever
• Flip-open Lens Caps
• Hex Wrench 2 mm
• Hex Wrench 1.5 mm
• CR2032 Battery
• Cleaning Cloth
• User Manual

More Information

• Warranty: Lifetime
• Patent: #N/A
• Materials: 6061-T6 Aluminum
• Surface Finish: Anodized
• Focal Plane: FFP (First Focal Plane)

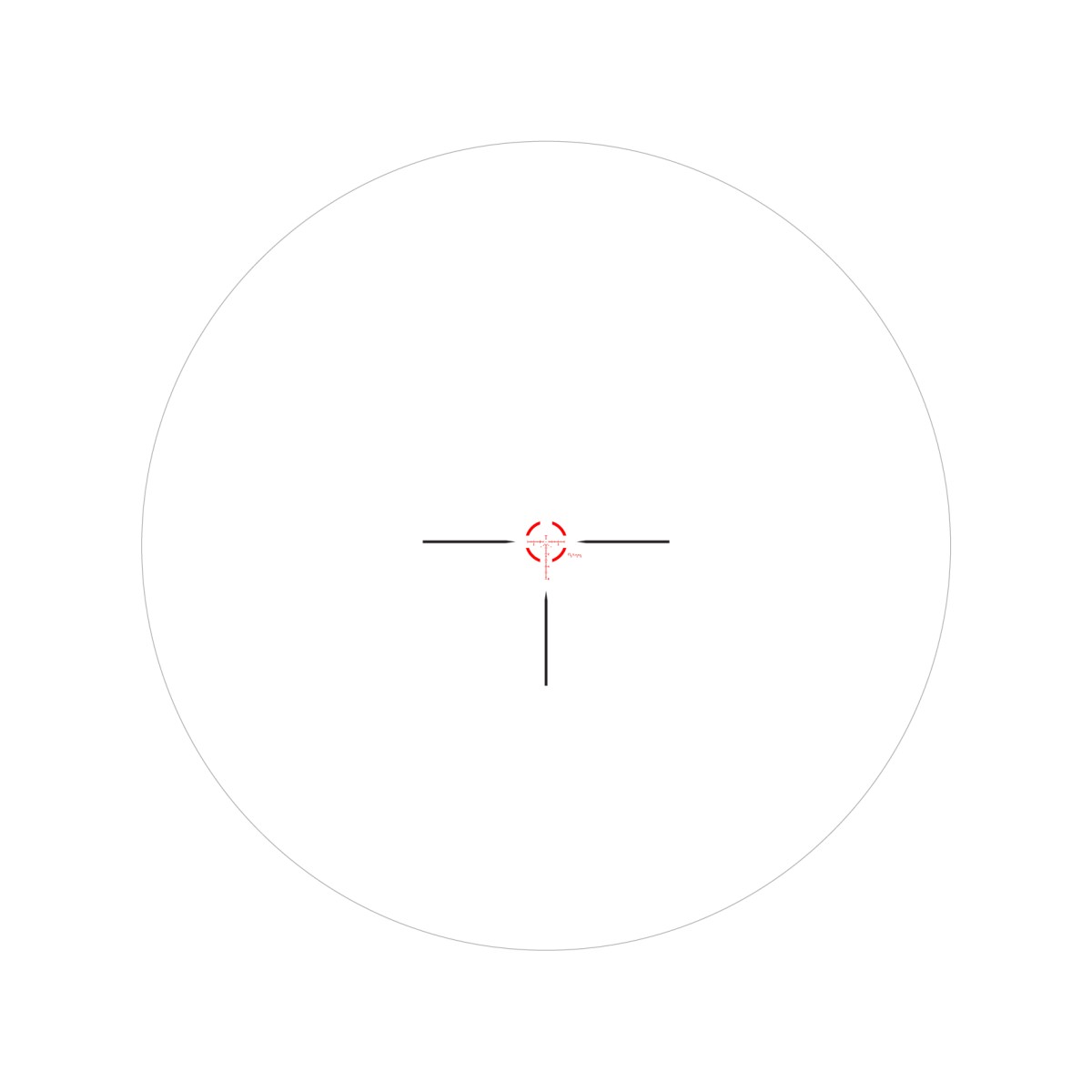

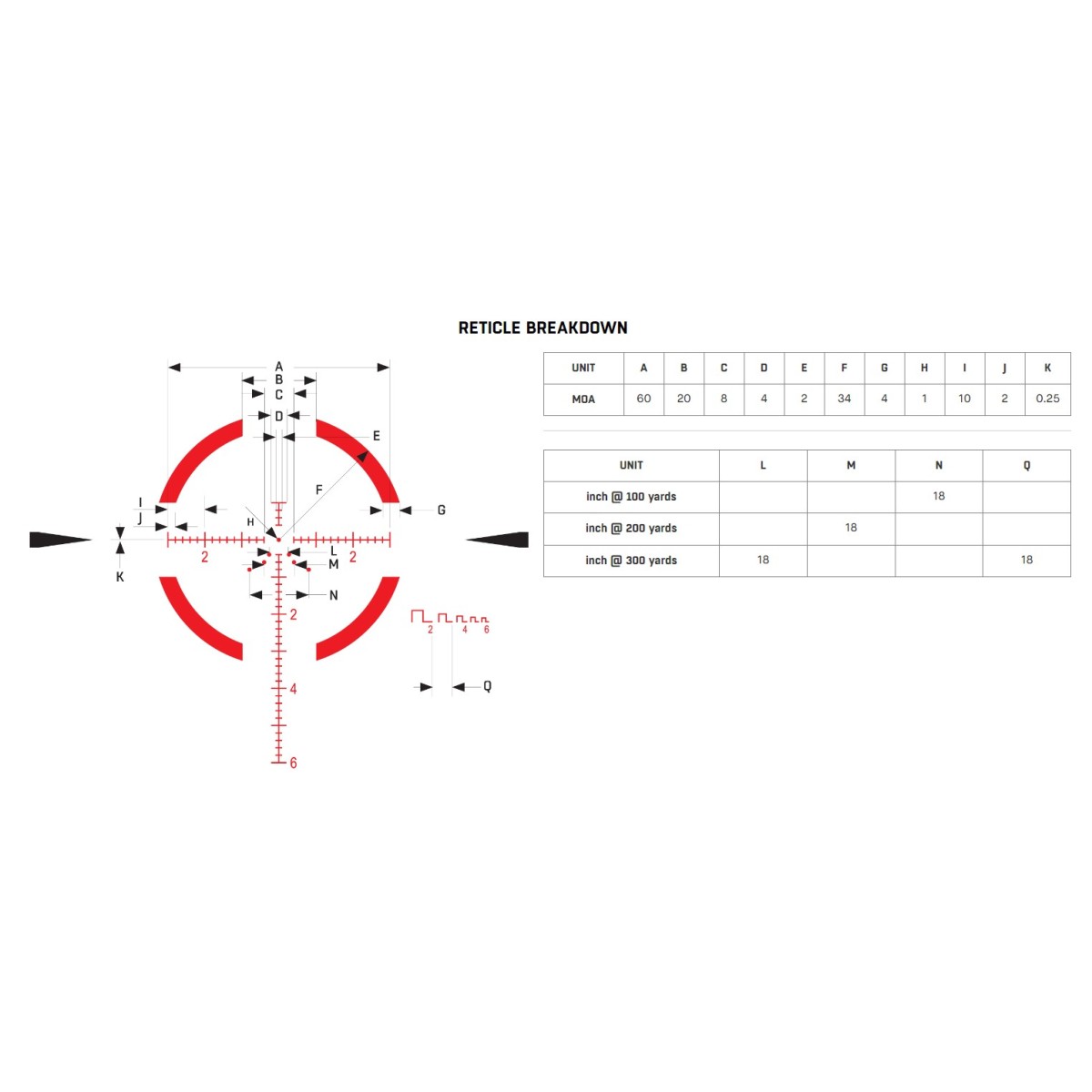

• Reticle: A1 MOA
• Reticle Type: Etched Glass
• Illuminated: Yes
• Reticle Color: Red and Green
• Brightness Settings: 10
• Brightness Mode(s): Manual
• Auto Shutoff (hrs): 12
• Temperature Operating Range: -40⁰C to +71⁰C / -40⁰F to +160⁰F
• Waterproof Rating: IPX7
• Ballistic Drop Compensation: No
• Range Estimation: Yes

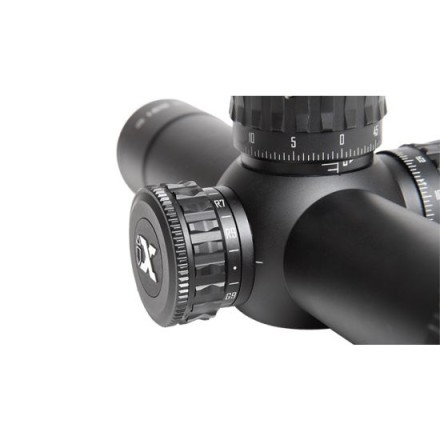

• Battery Loading: Left Side Turret
• Battery Type: CR2032
• Click Value: 1/2 MOA
• Windage Travel: Right 25 MOA / Left 25 MOA
• Total Windage: 50 MOA
• Elevation Travel: Up 60 MOA / Down 40 MOA
• Total Elevation: 100 MOA
• Travel Per Revolution: 50 MOA
• Magnification Max.: 8
• Magnification Min.: 1
• Angular FOV: Low Power: 21.8° / High Power: 2.7°
• Linear FOV @ 100 yds: Low Power: 115.5′ / High Power: 14.1′
• Linear FOV @ 100 m: Low Power: 38.5 m / High Power: 4.7 m
• Light Transmission: 92%
• Eye Relief: 95 mm / 3.74 in
• Parallax Control: Fixed
• Parallax: Preset @ 91.4 m / 100 yds
• Exit Pupil: Low Power: 3.5 mm / High Power: 10 mm
• Diopter Adjustment: -3D ~ +2D
• Diopter Type: Friction Secured
• Caliber Rating: .338 Lapua Magnum
