- Magnification (x): 3
- Resolution: 10.0
- Objective lens diameter (mm): 18
- Eyepiece diameter (mm): 30
- Exit pupil diameter (mm): 5.6
- Eye relief (in/mm): 2.32 / 59.0
- Field of view, degree: 6.8
- Field of view (m @100m): 11.88
- Field of view (ft @100yd): 35.65
- Diopter adjustment (+/-): +2 to -2
- Maximum caliber:.338
- Shockproof (yes/no): yes
- Fog proof (yes/no): yes
- IP Standard (water rating): IPX7 (1m for 1 hr)
- Body material: 6061 Aluminum
- Lens material/type: Glass
- Lens coatings: FMC
- Mount type: Flip-to-Side
- Operating temperature (°F/°C): -4 to 140 / -20 to 60
- Finish/color: Matte Black Anodize
- Length (mm/in.): 69 / 2.72
- Width (mm/in.): 55 / 2.17
- Height (mm/in.): 68 / 2.68
- Weight w/ mount (oz/g): 8.1 / 230
- Height of Optical Axis 39 mm (1.5 in) measured from top surface of mechanical interface
- Most compact magnifier on the market
- Lightest weight magnifier on the market
- Improved Target recognition, especially medium range targets
- Locking Quick Detach mounting Platform for quick and easy mounting/removal
- Waterproof and dustproof
- Fully Multi-coated optics

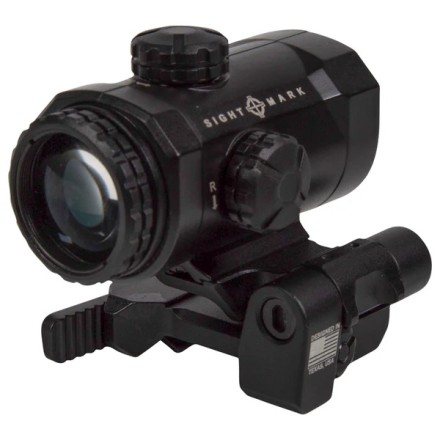

- Finger adjustable windage and elevation for reticle alignment
- Increases Magnification of Accompanying Sights for Greater Engagement range

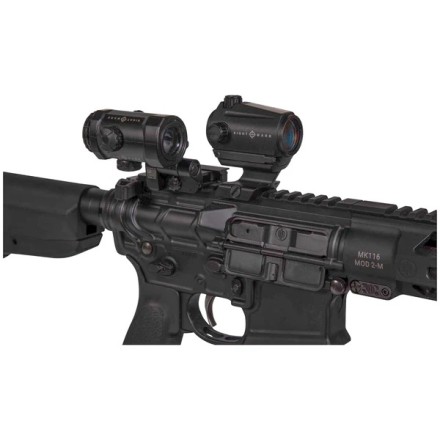

- Compatible with most red dot and reflex sights
The ideal magnifier should be lightweight, durable, and user-friendly. The Sightmark XTM 3 magnifier is a prime example of an optic that fulfills all three criteria.
When compared to its closest rivals, the XTM 3 is more than an ounce lighter while providing the same magnification power. It offers a comparable angular field of view and IPX7 waterproof rating to its counterpart, all at a more affordable price point than the closest comparable model. Notably, the Sightmark XTM 3 distinguishes itself with a more ergonomic flip-to-side mechanism, setting it apart from the push-press flip of rival models. The Sightmark XTM-3 magnifier excels as an exemplary optic that embodies the essential qualities of a great lightweight magnifier.

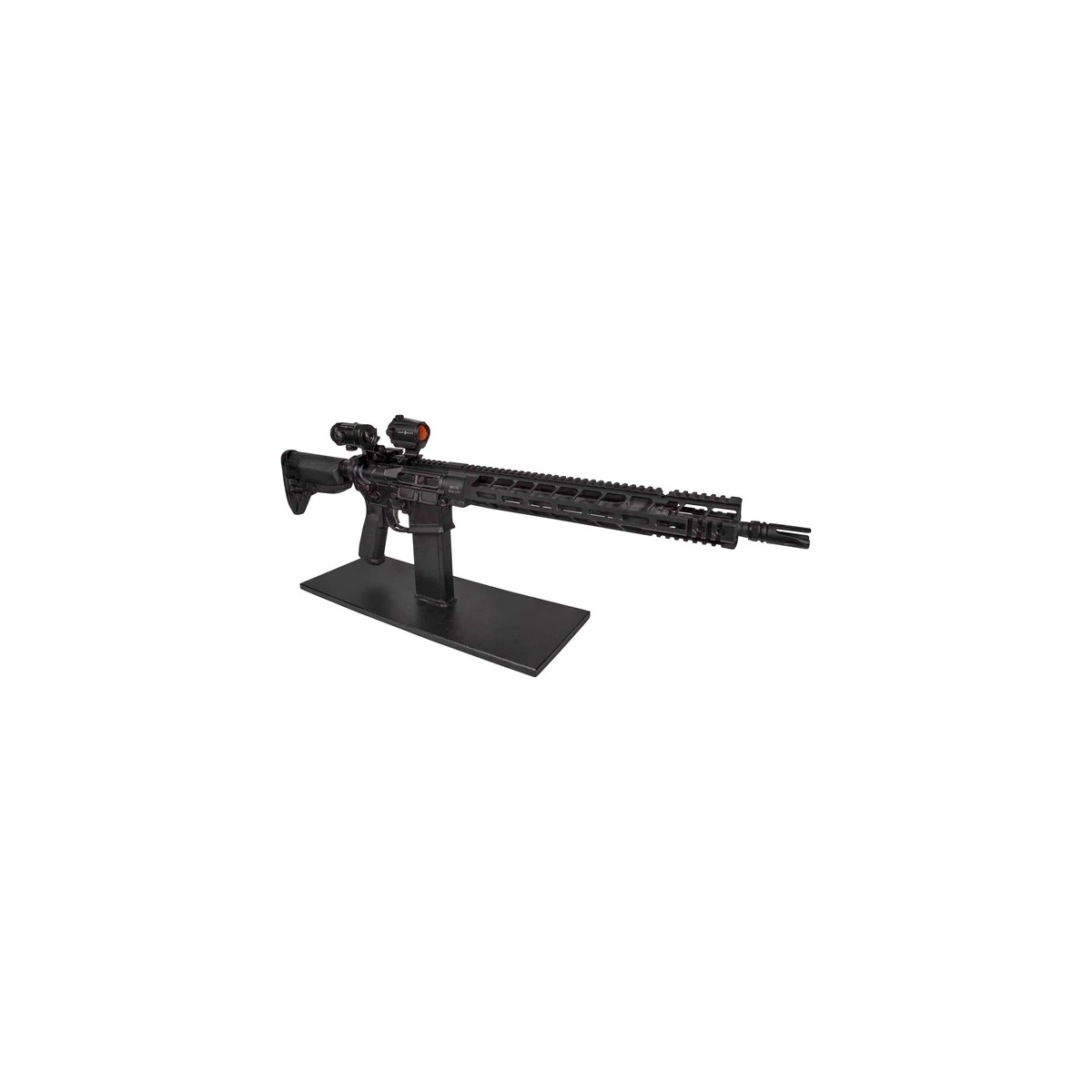

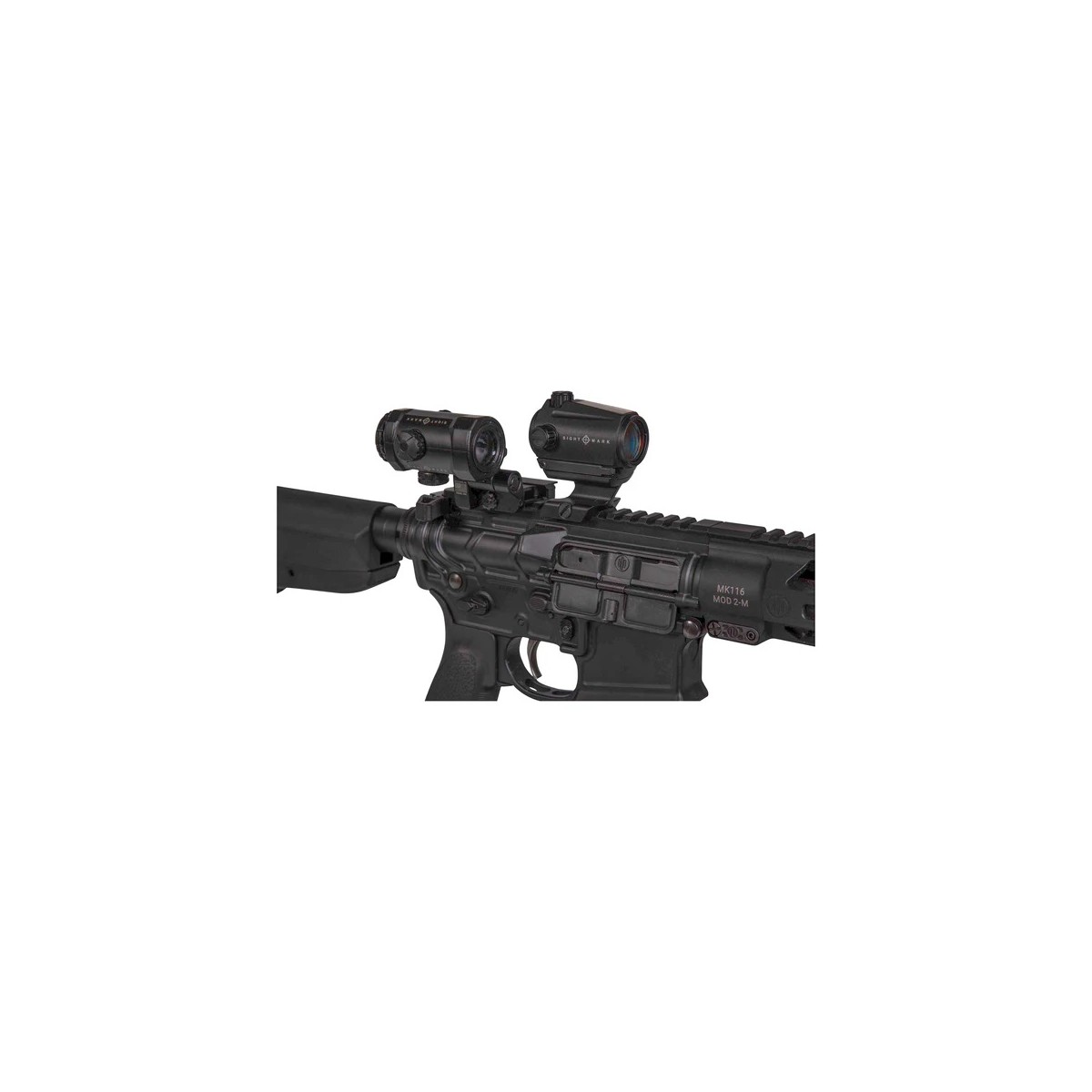

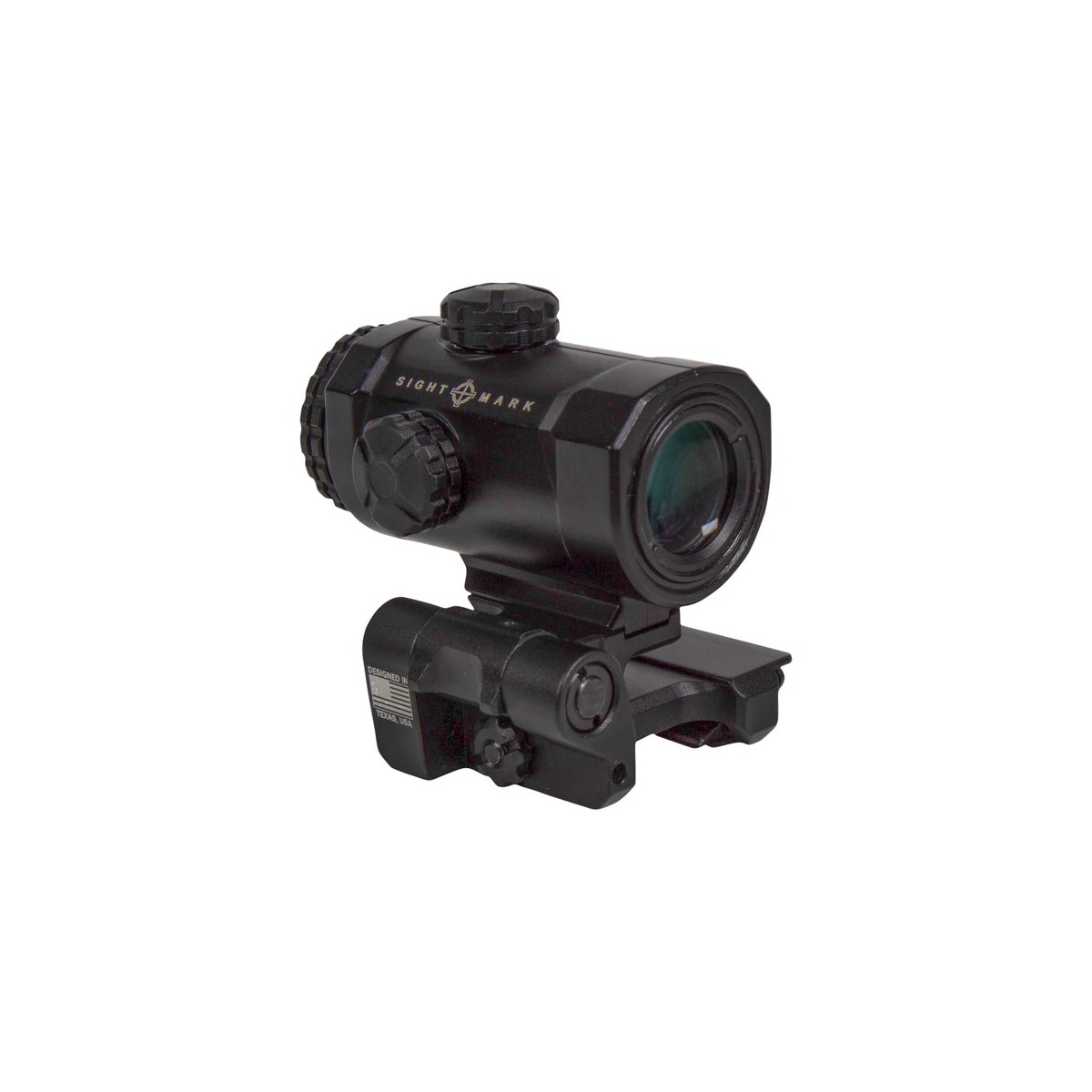

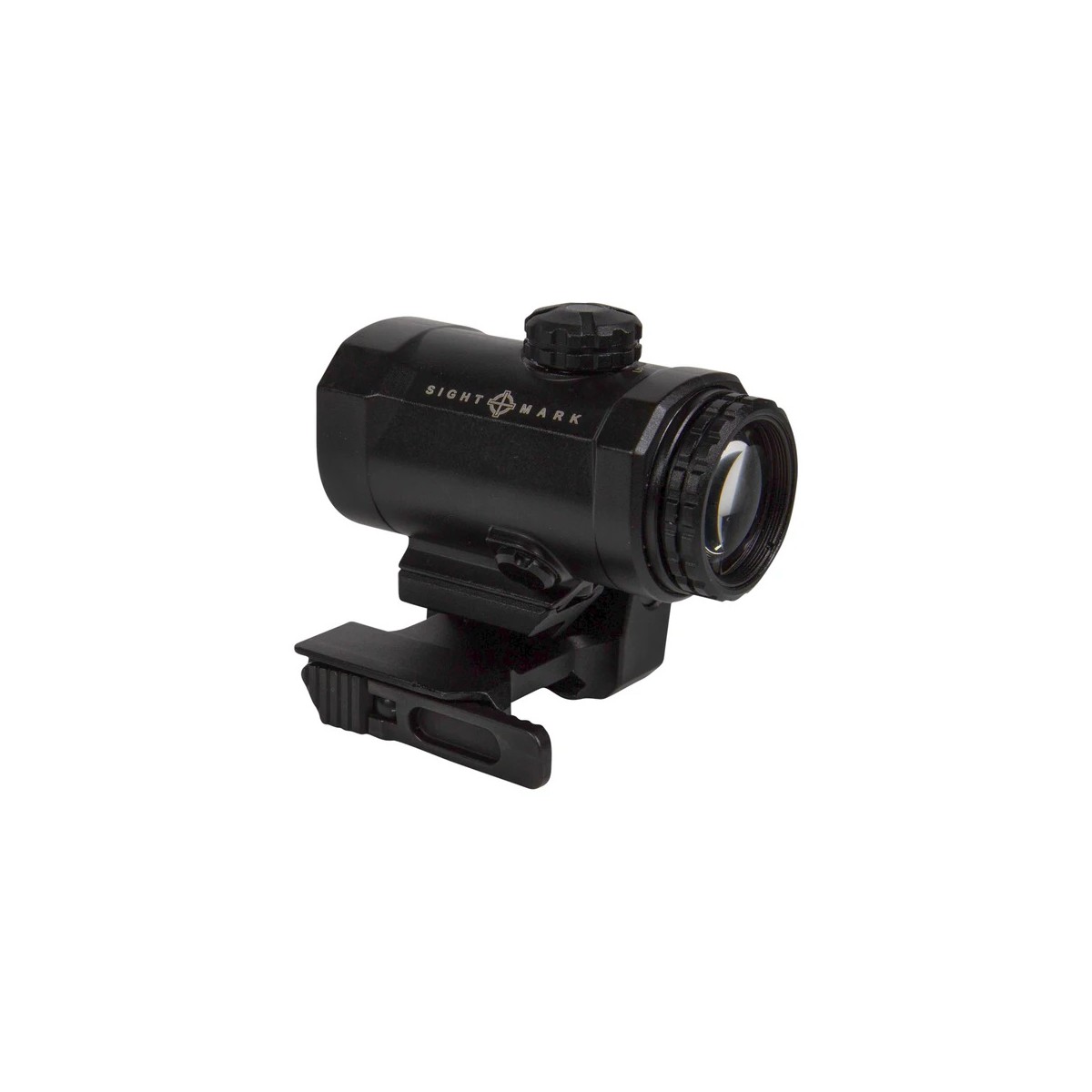

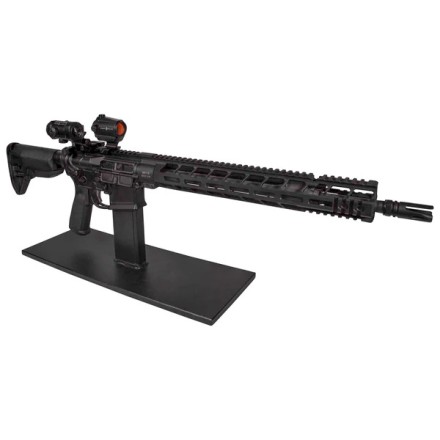

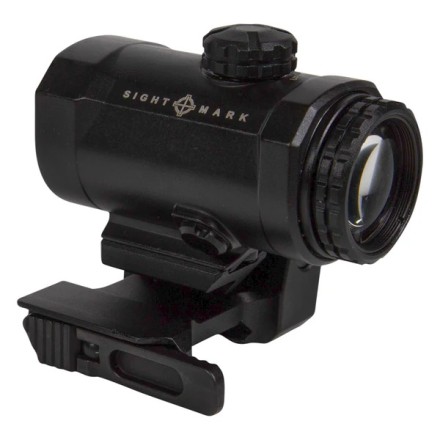

When you need to transition from close-range engagement to mid-range precision shots without adding extra weight to your rifle, the XTM-3 Magnifier is the right tool for you. Sightmark offers the lightest, most compact magnifier in the market today. Weighing only 8.1 oz, this 3-inch long magnifier has an 18mm objective lens and provides 3x magnification to a wide variety of rifle-mounted red dot sights.

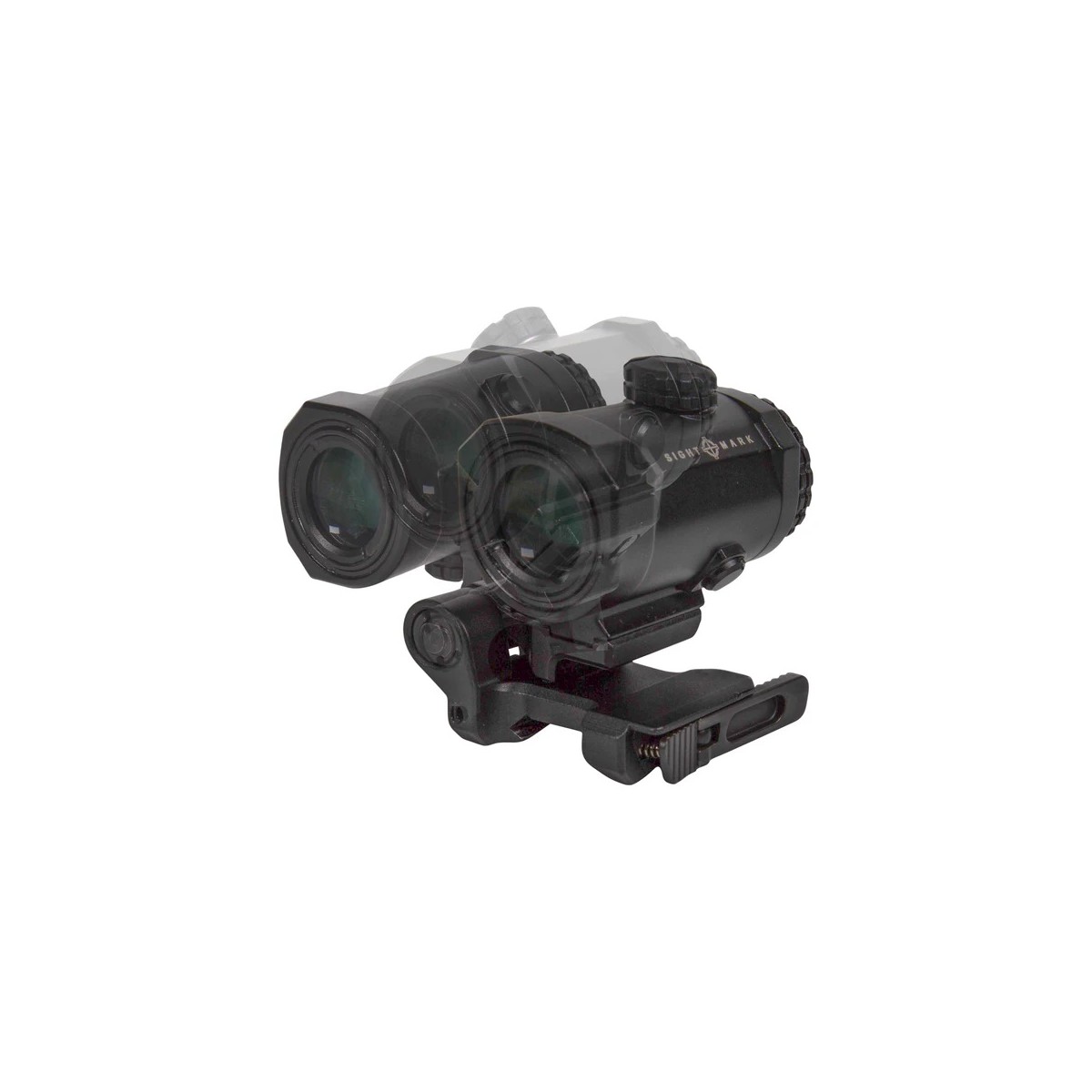

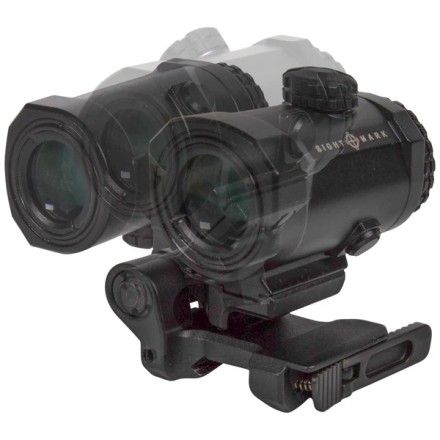

Outfitted with a no-nonsense flip-to-side mechanism as well as a simple locking quick detach mount, the XTM-3 is designed with practicality and ergonomics in mind. Constructed with shockproof 6061 aluminum housing with an IPX7 waterproof rating and a nitrogen-filled chamber to eliminate fog, the XTM-3 Magnifier is a quality magnifier that’s built to last.
