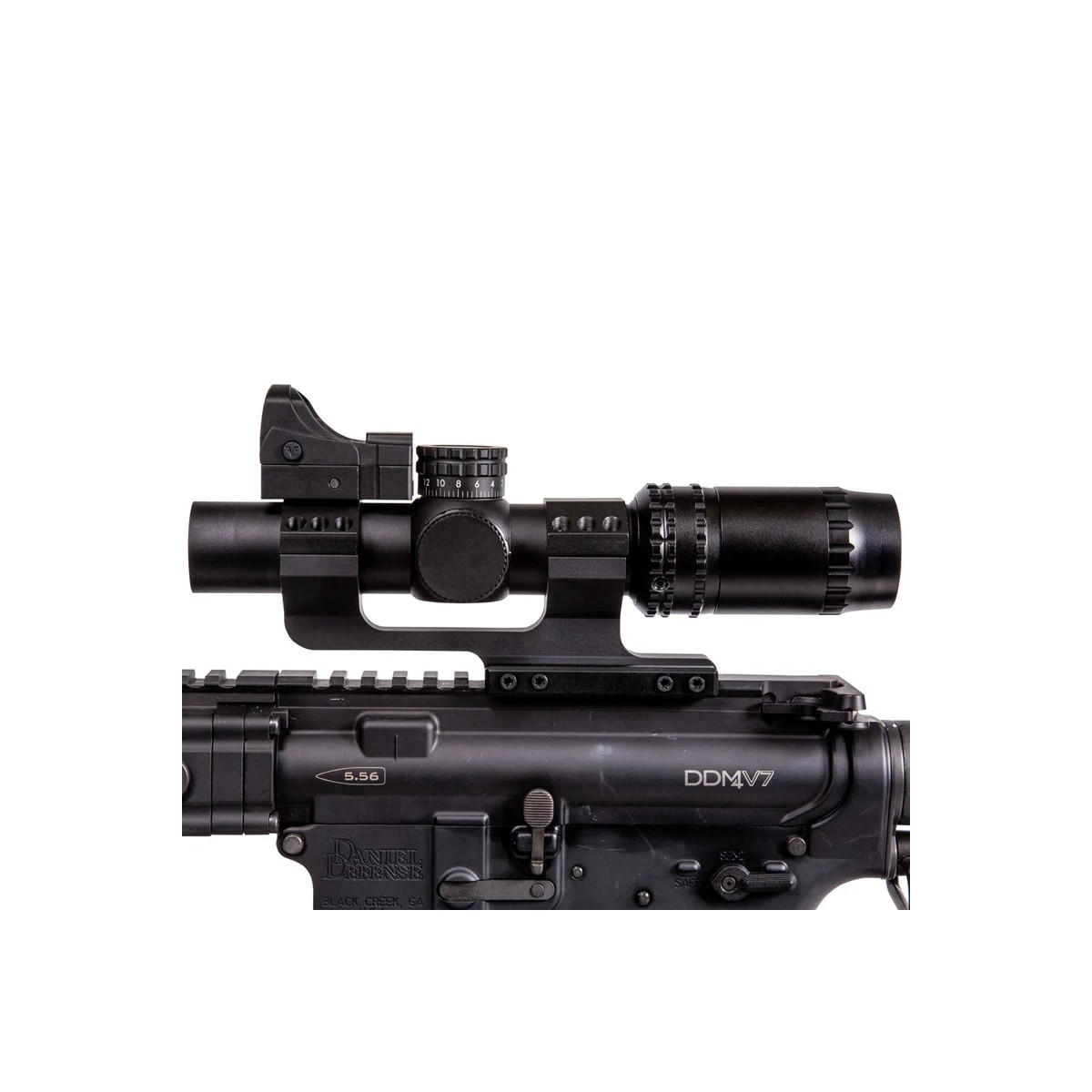

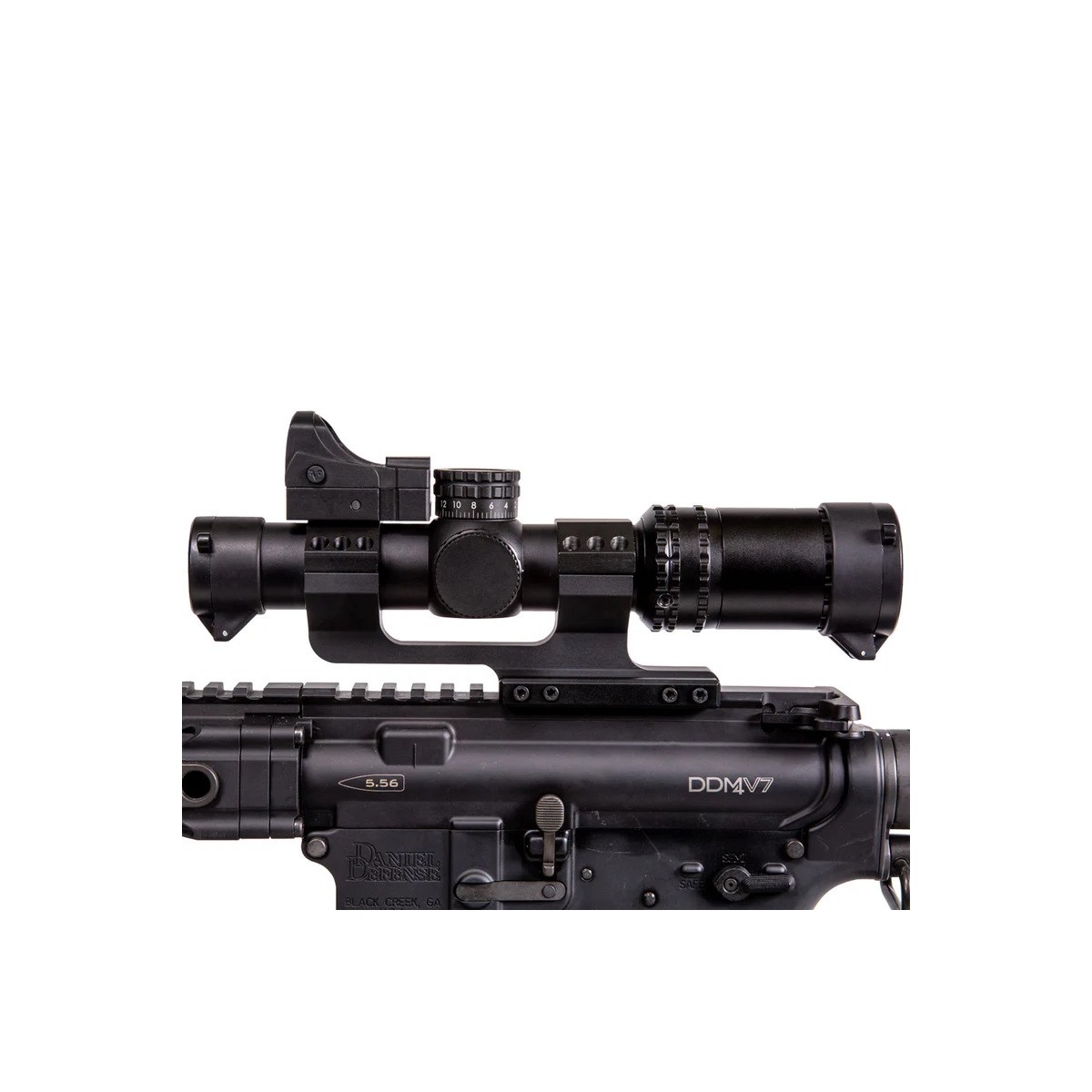

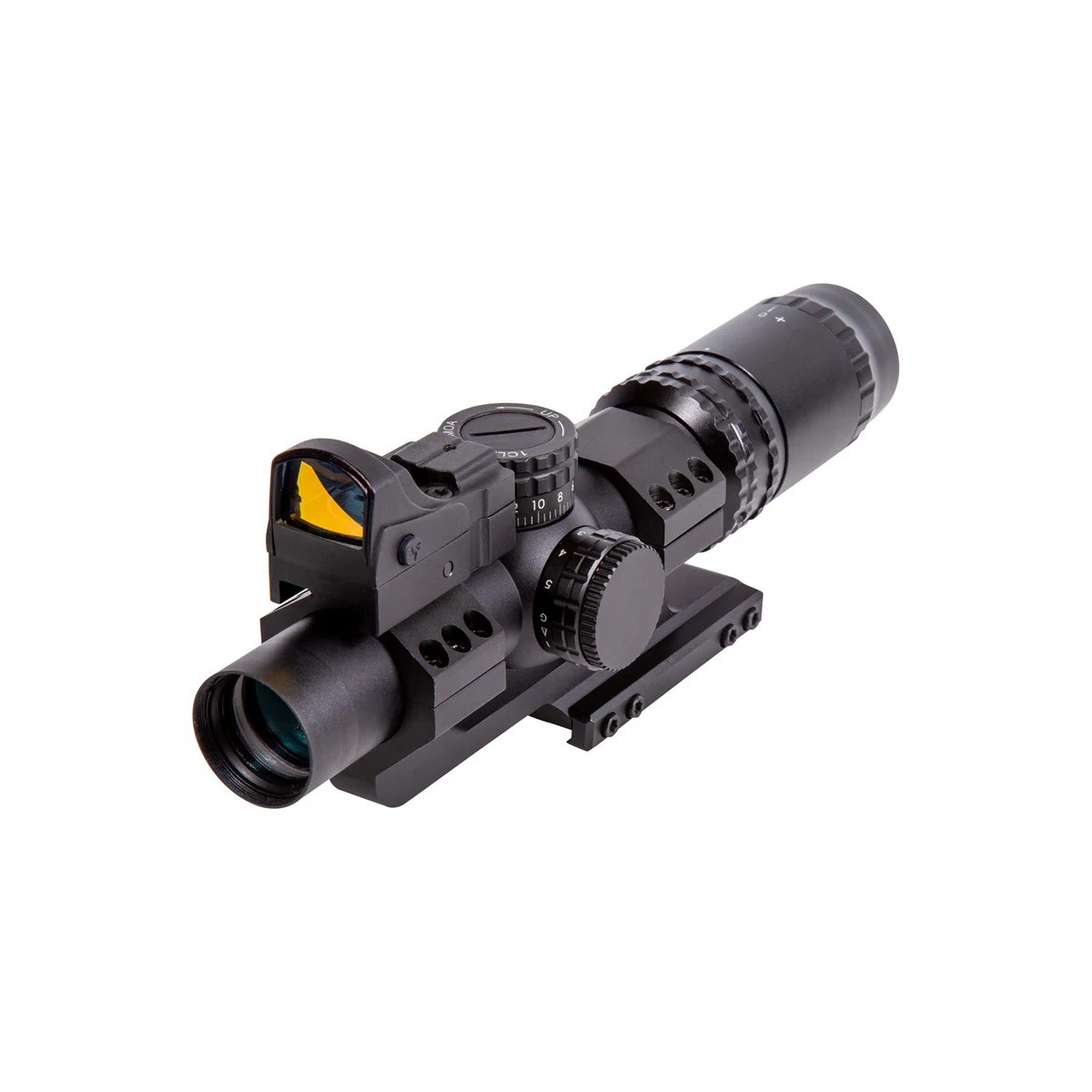

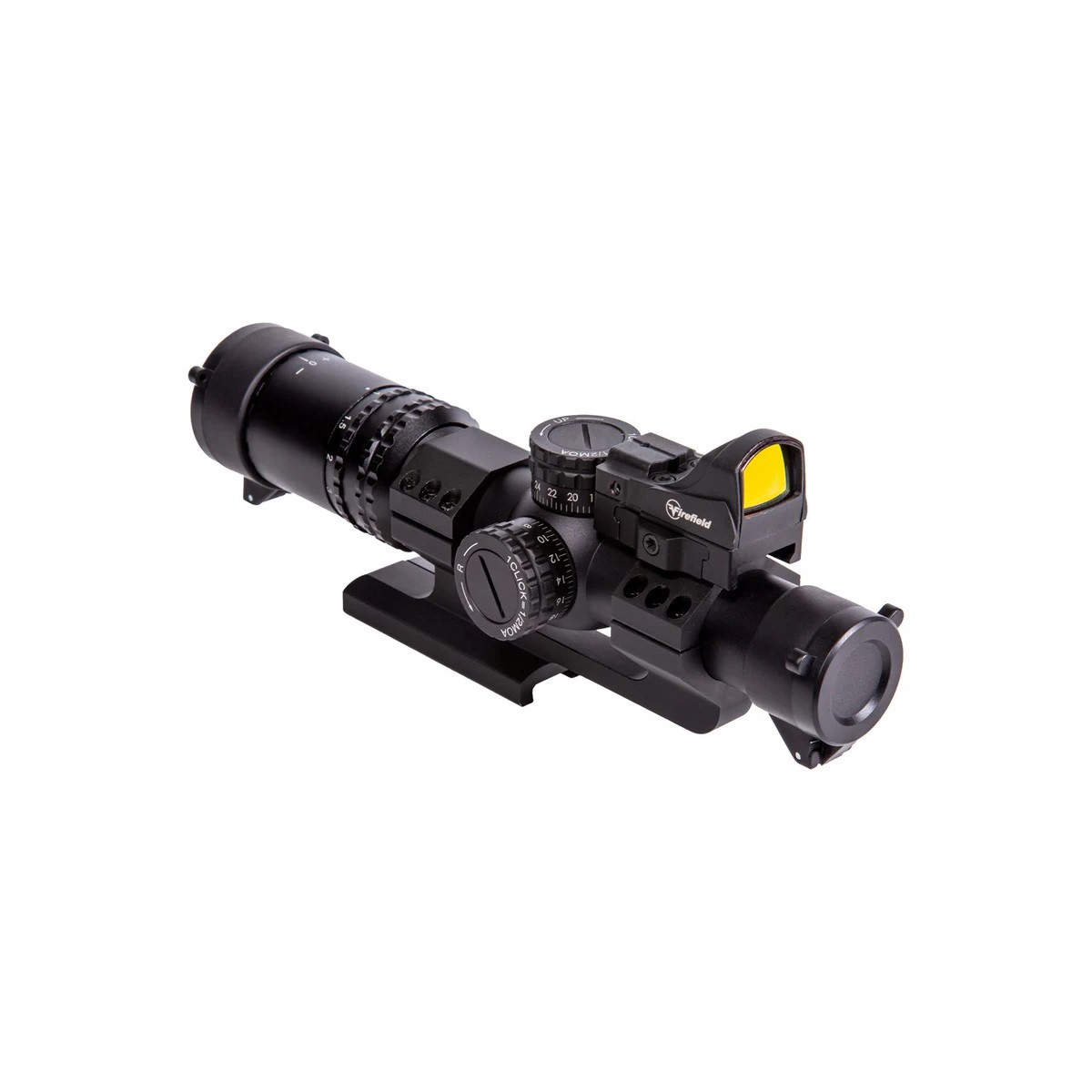

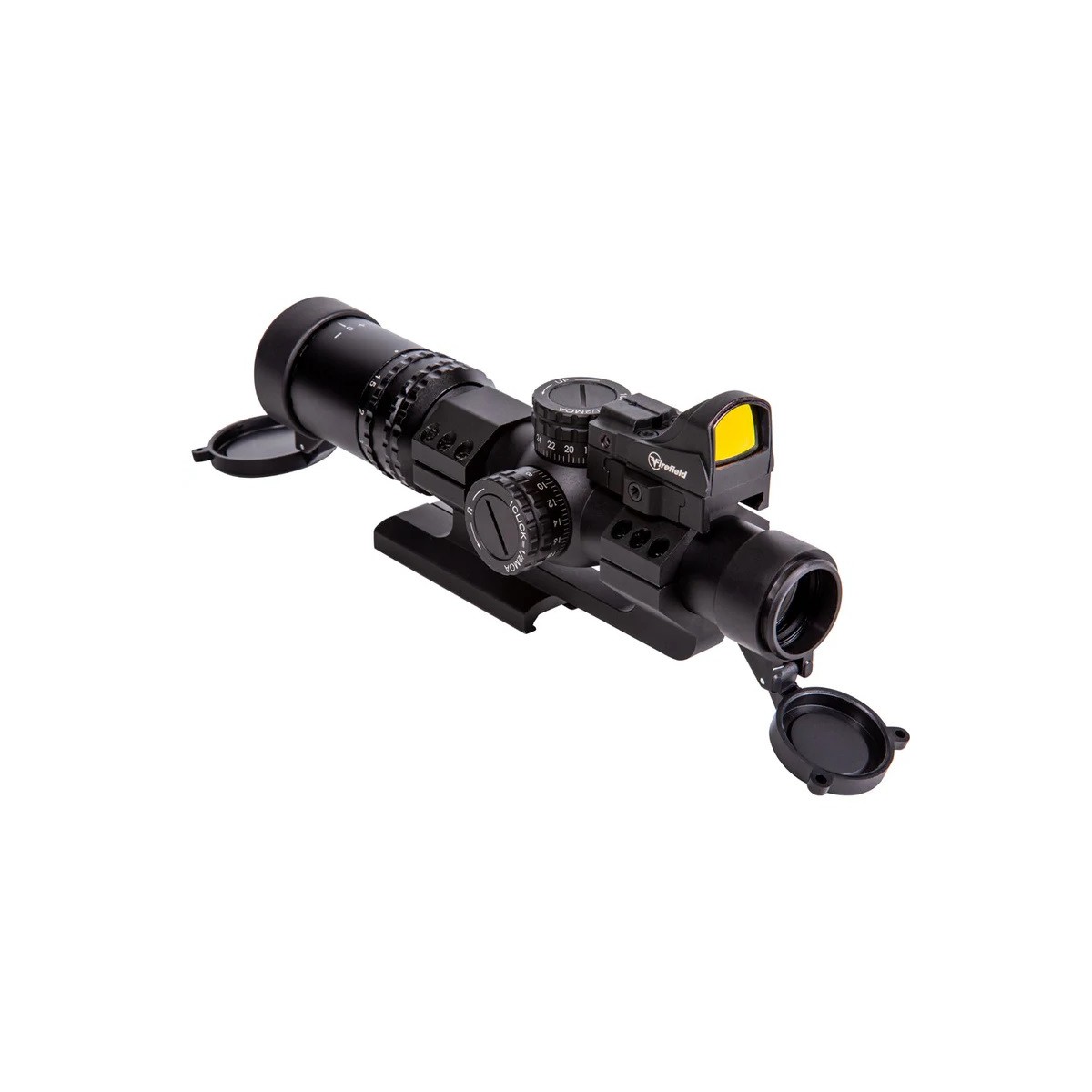

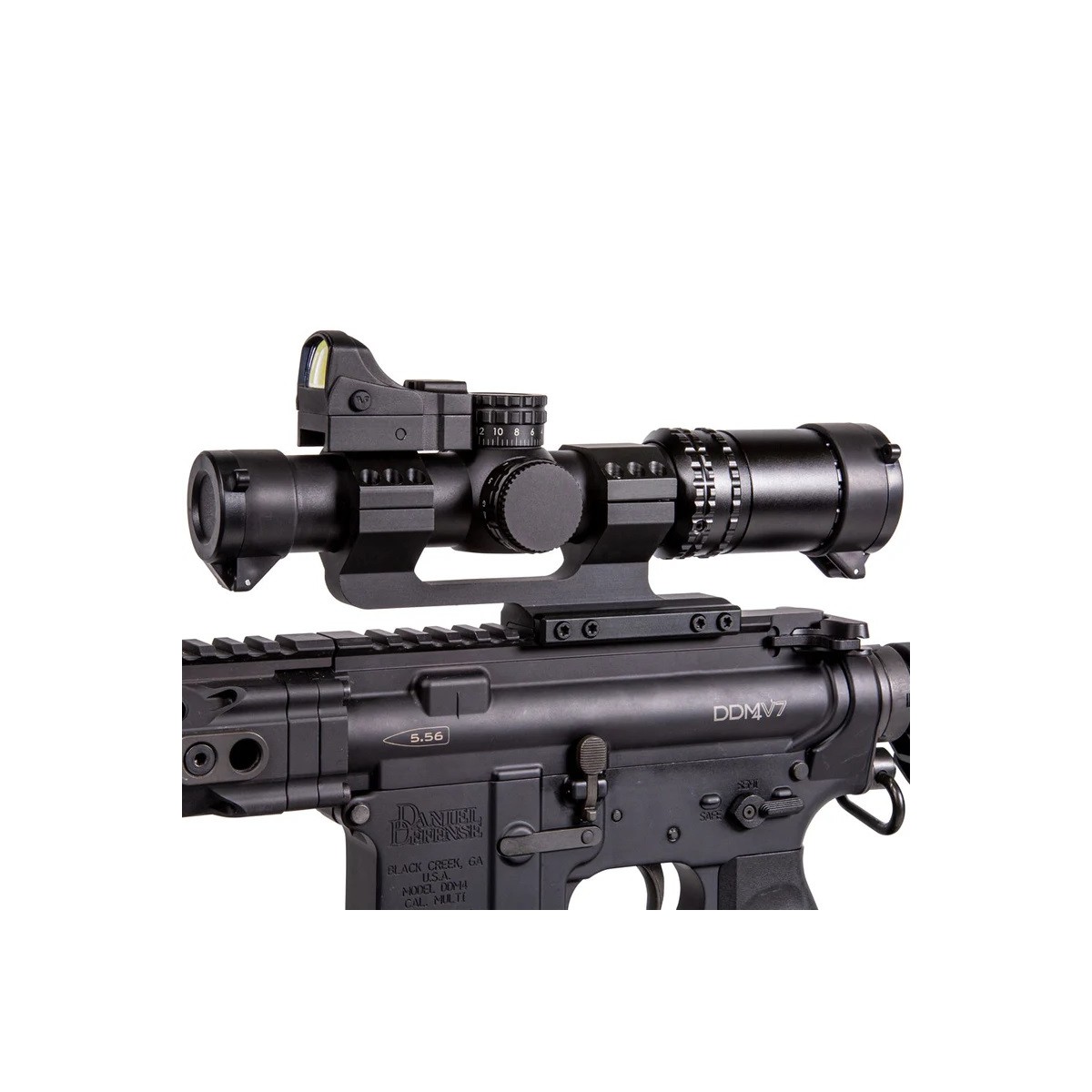

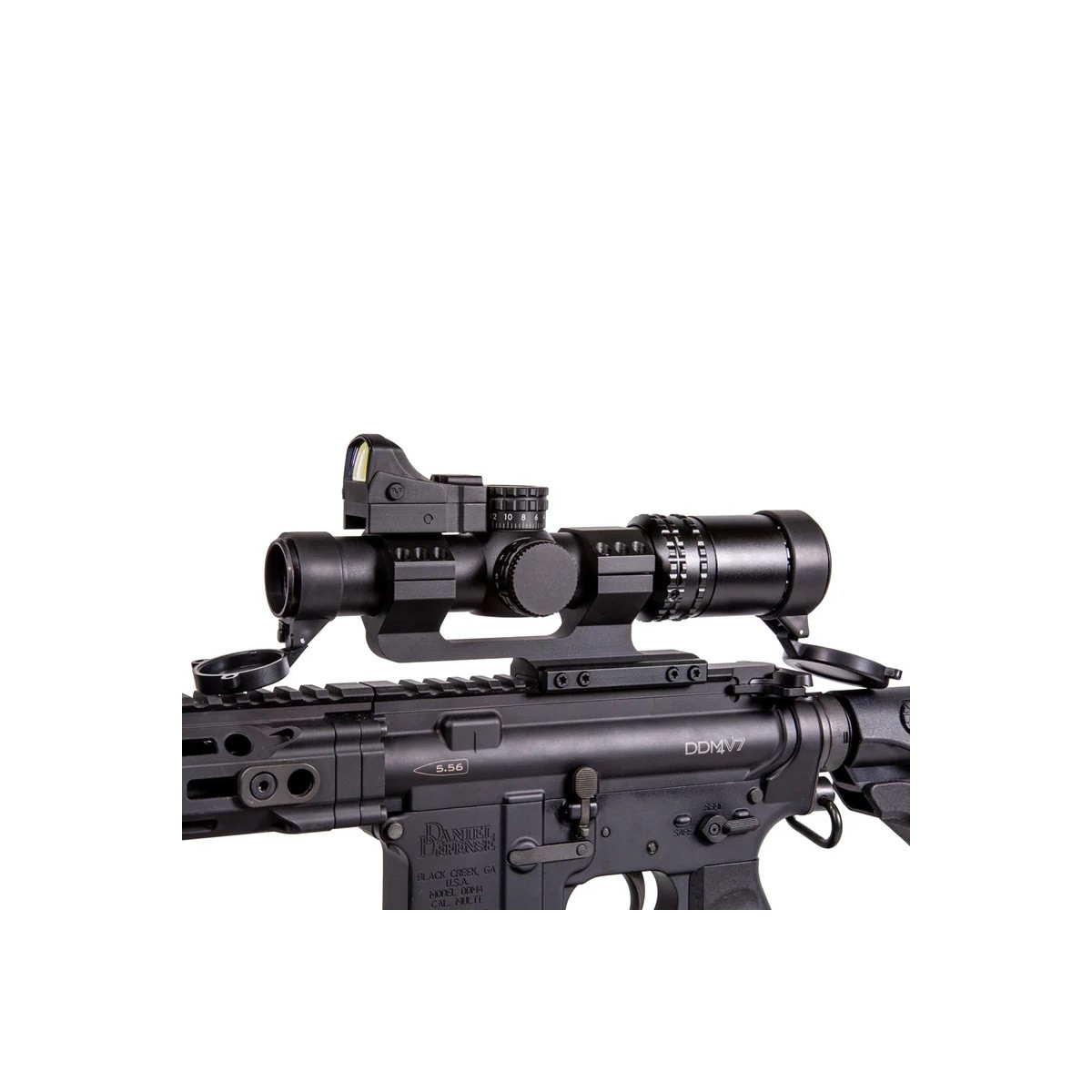

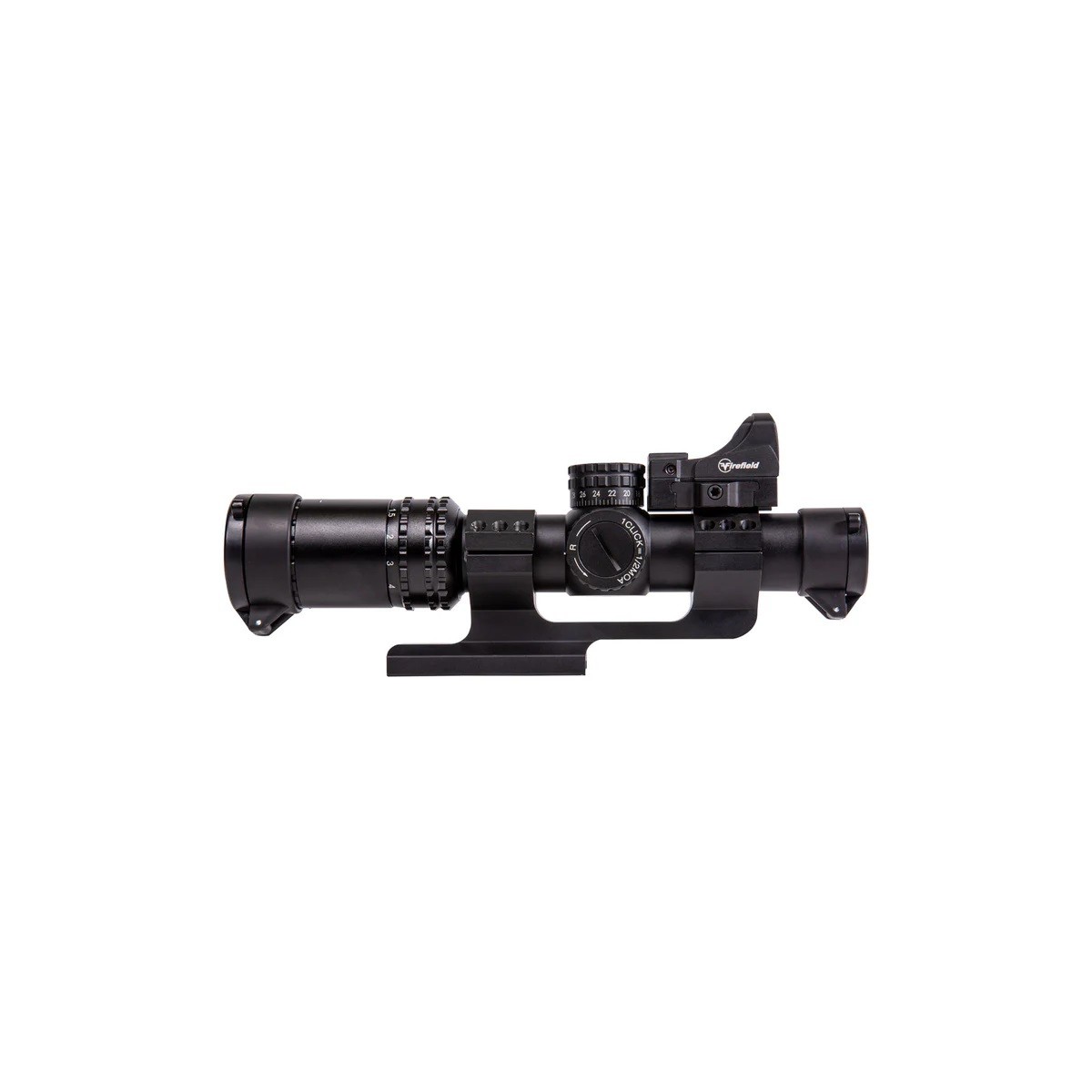

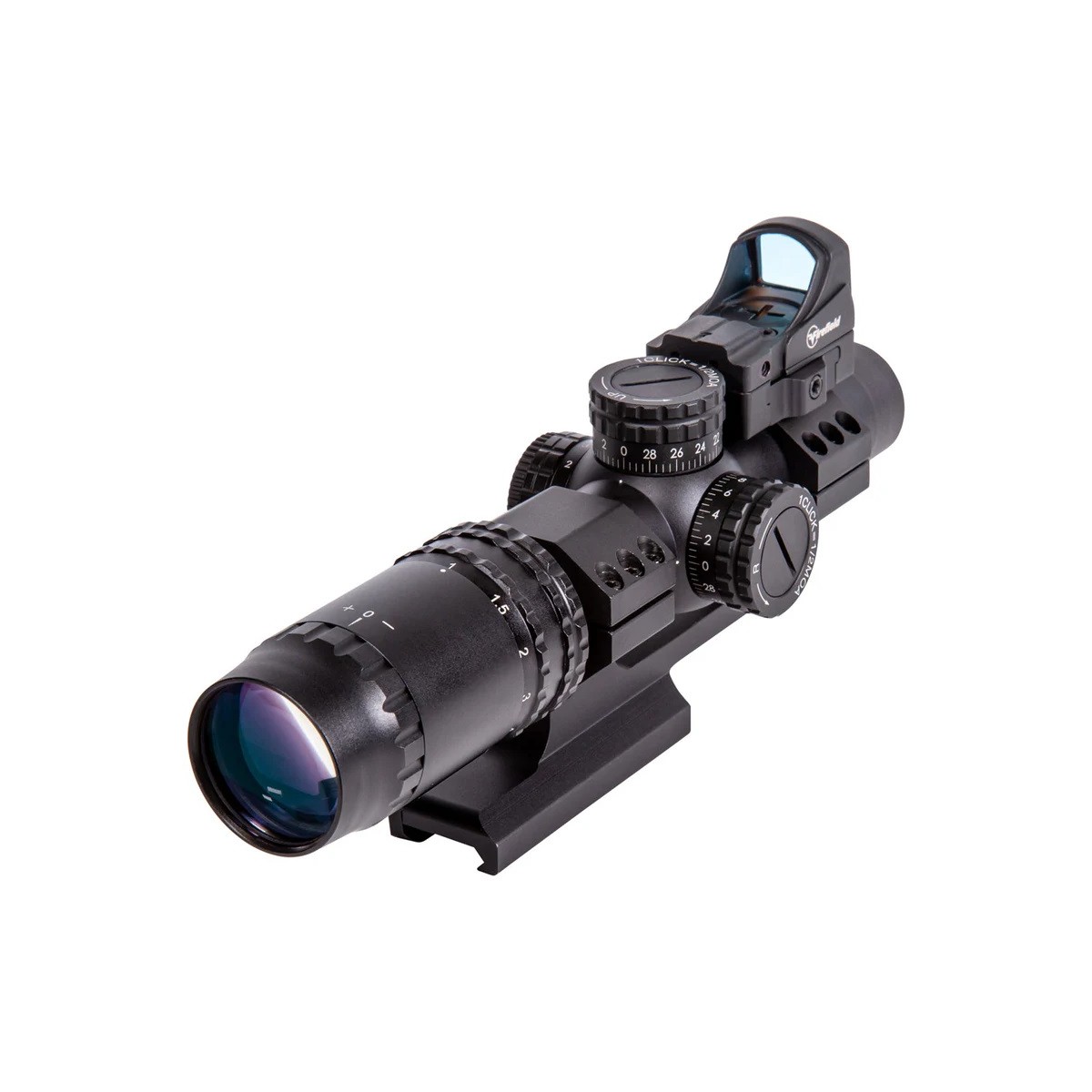

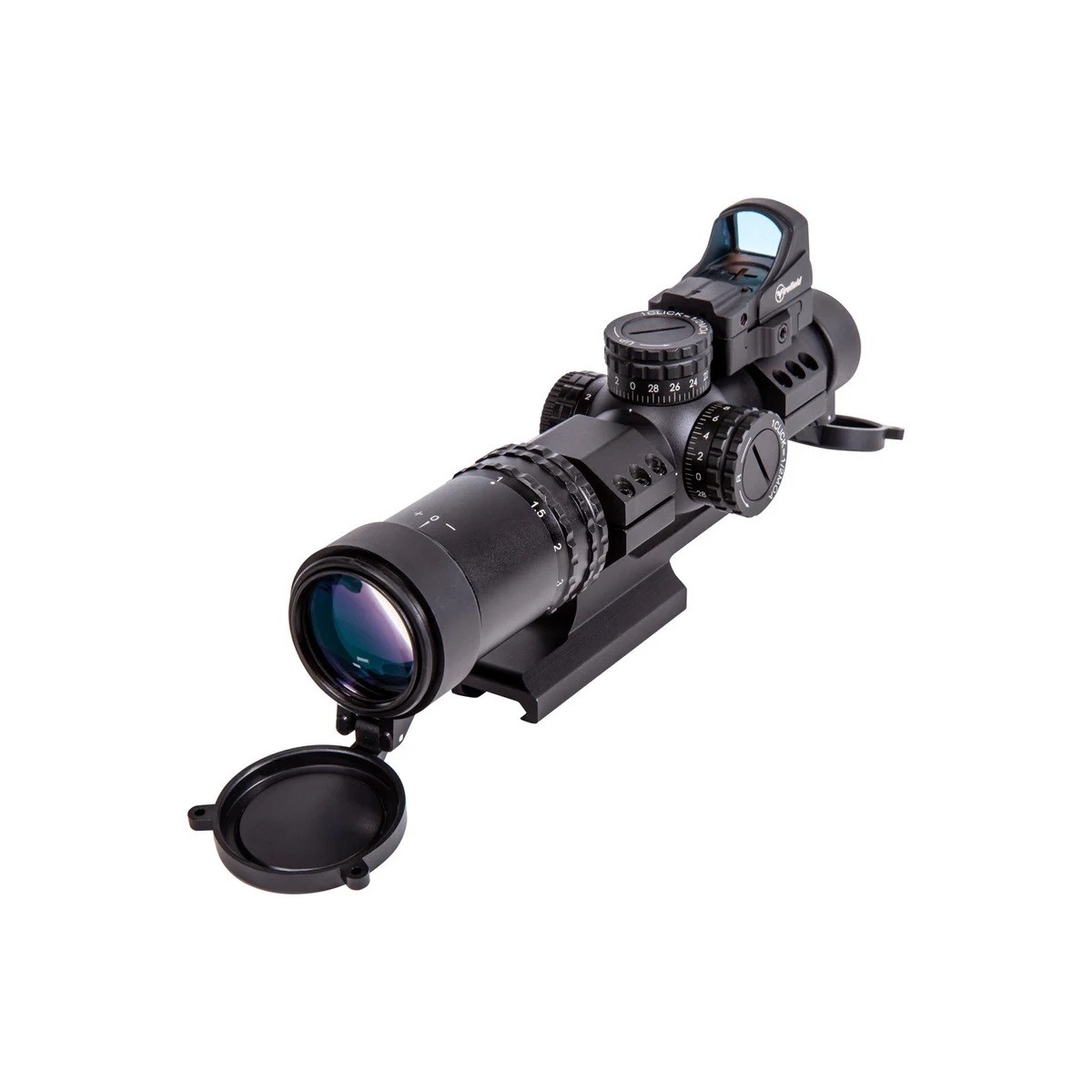

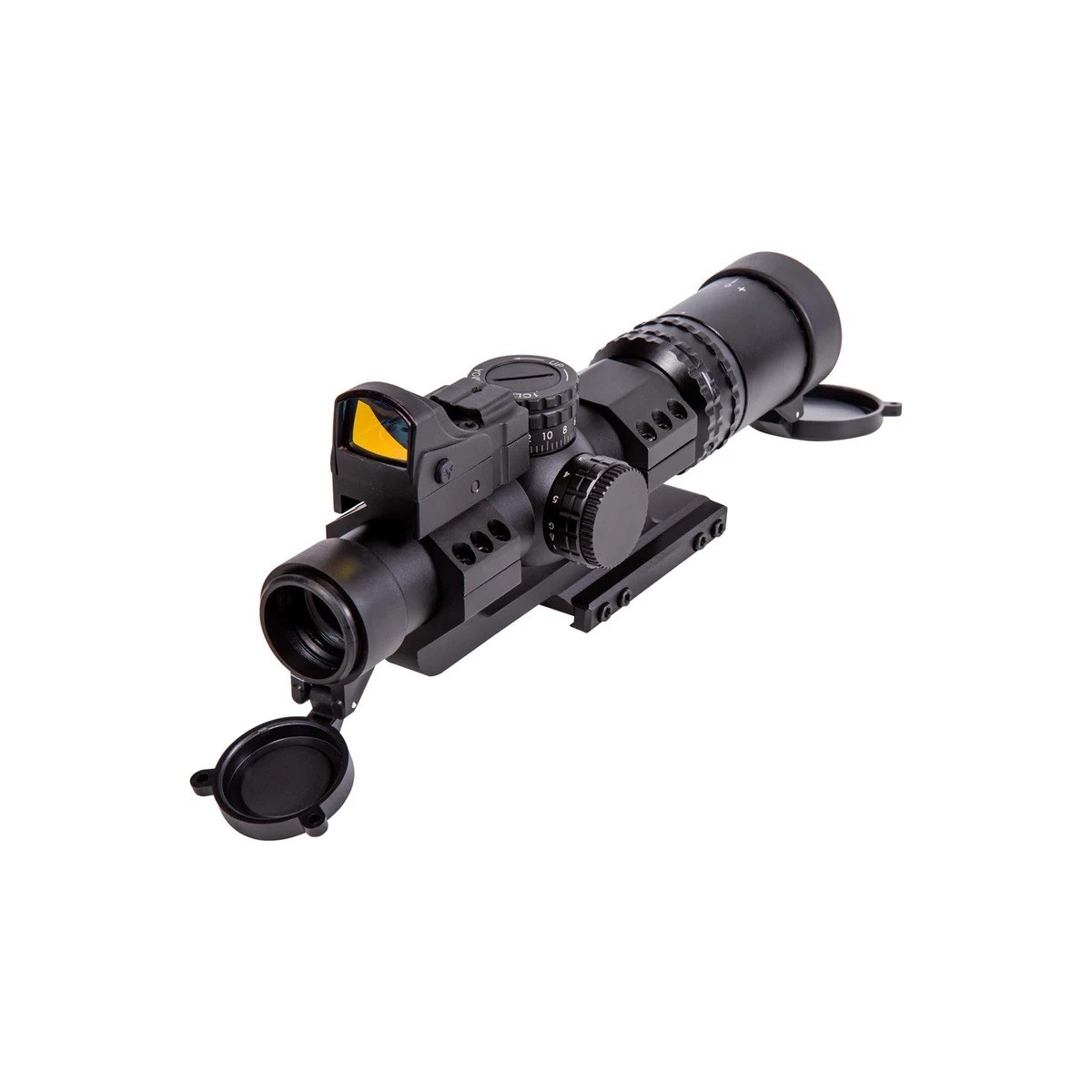

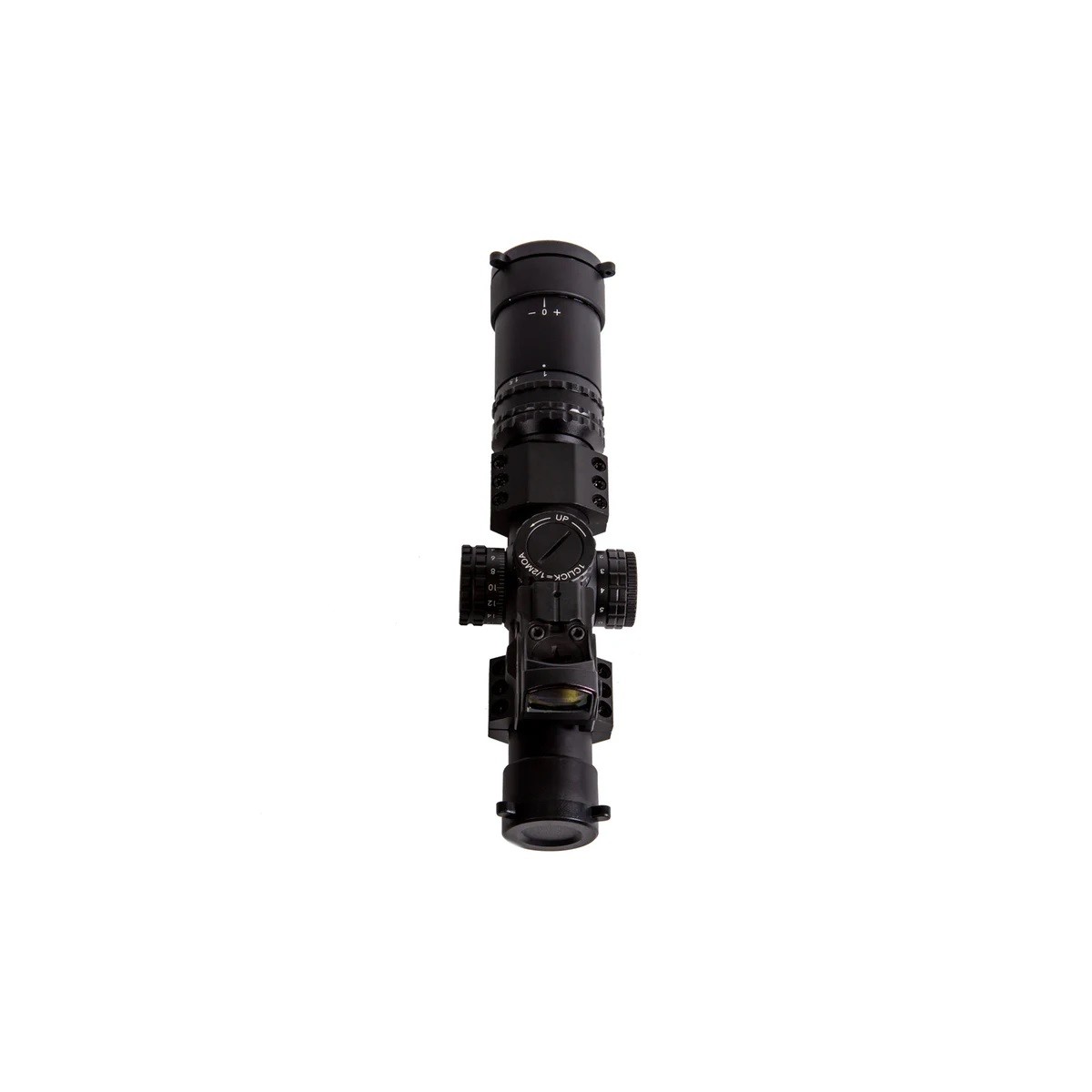

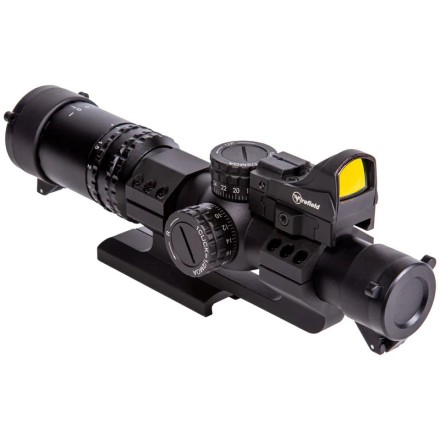

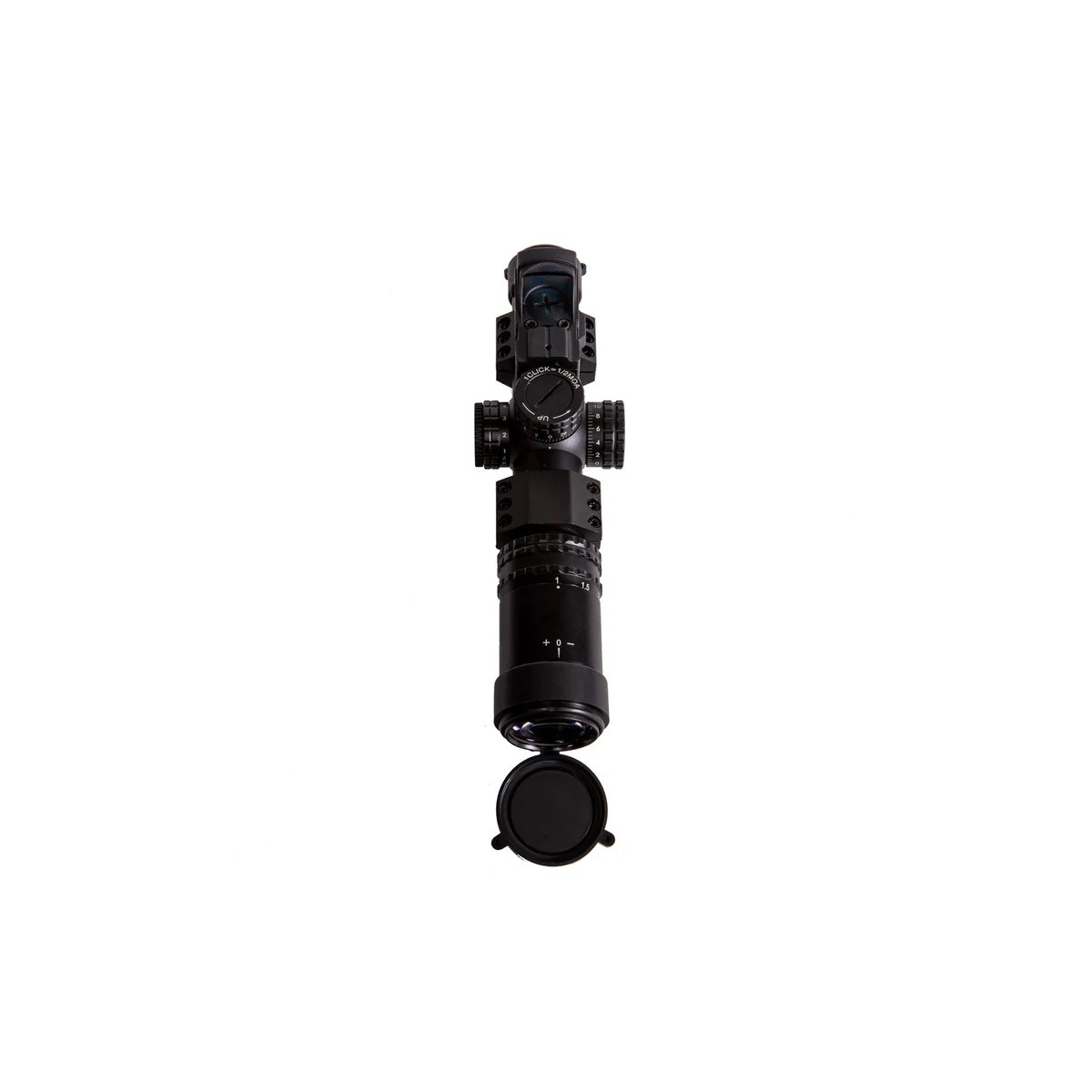

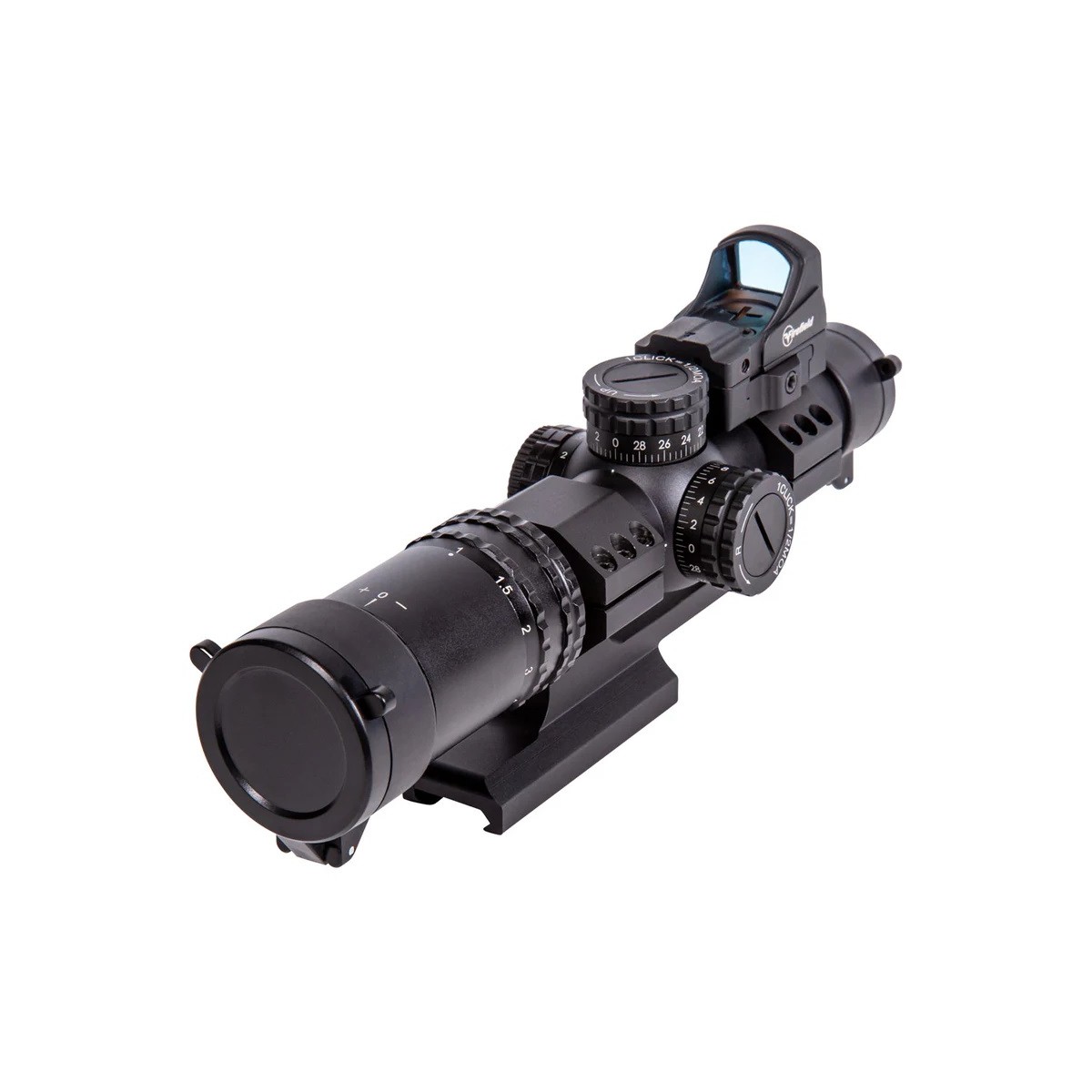

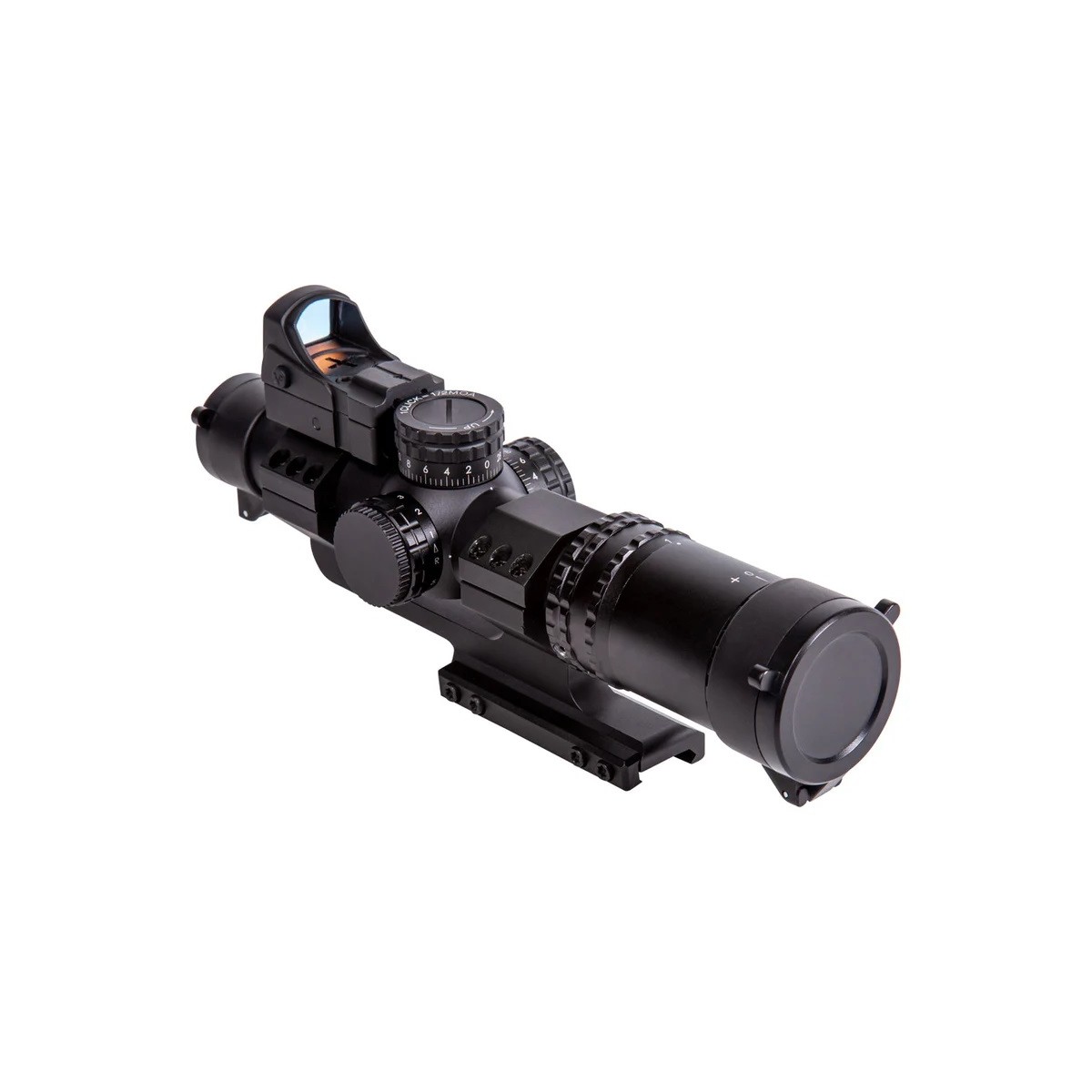

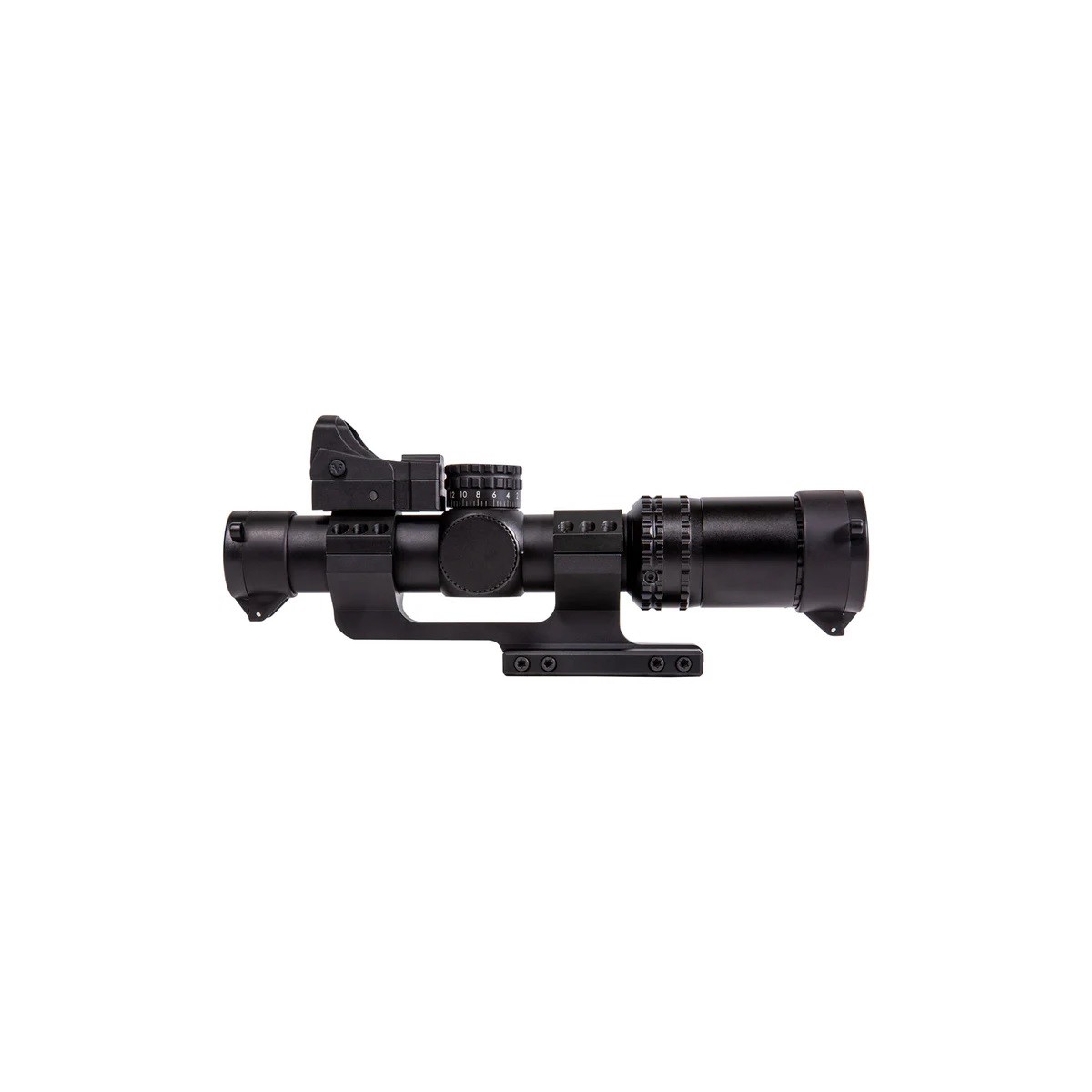

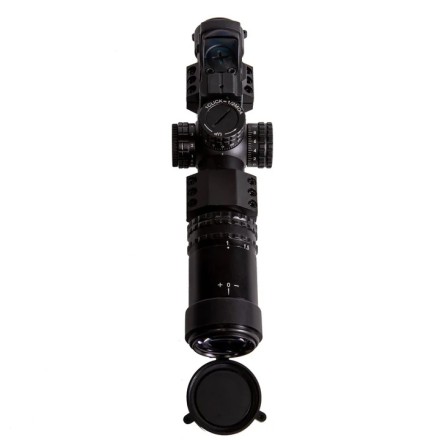

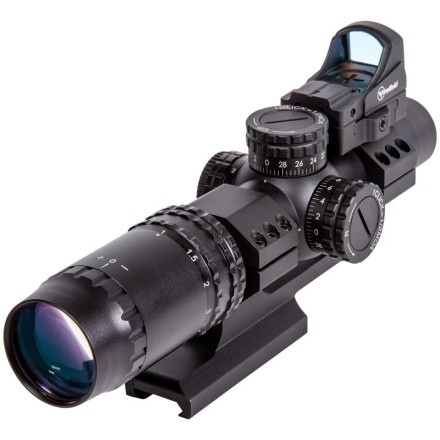

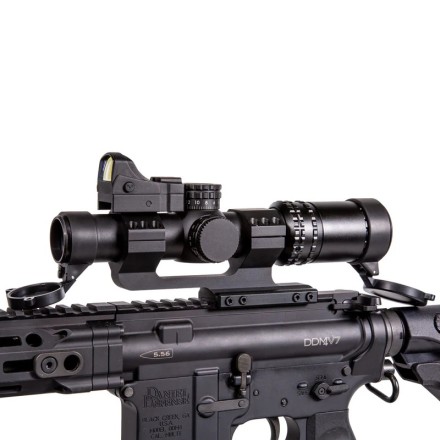

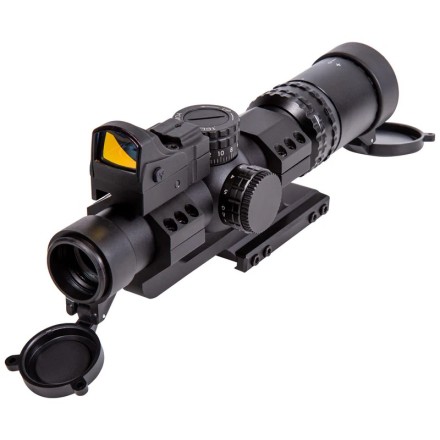

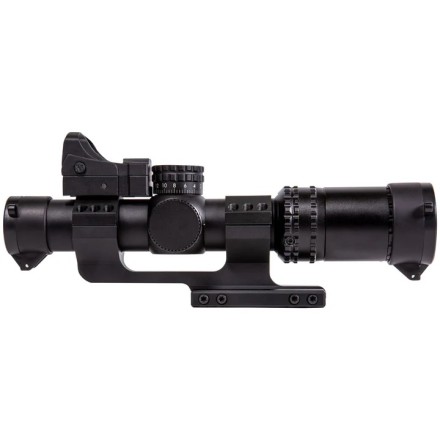

For a powerful, versatile riflescope look no further than the Firefield RapidStrike 1-4x24! This optic’s magnification range is ideal for hog and varmint hunting or 3-gun competition, and the included Impact Mini reflex sight ensures fast and accurate target acquisition. The RapidStrike 1-4x features a fully multi-coated lens and a red, green or black Circle Dot reticle with 5 brightness settings to accommodate your environment and target preferences. Housed in a durable aluminum body, the RapidStrike 1-4x is IP67 waterproof and dustproof, fog-proof, able to withstand up to .338 caliber recoil and capable of operating in temperatures ranging from -13F to 131F. Utilizing CR2032 batteries, the RapidStrike will function up to 100 hours and weighs a mere 13.8 ounces.

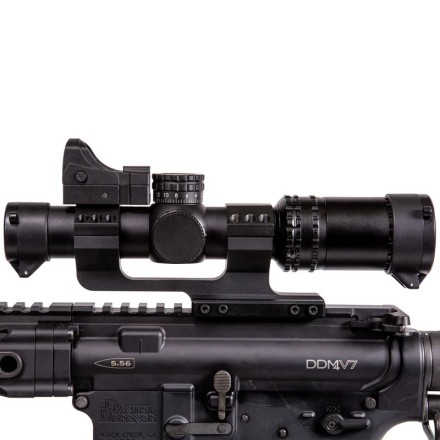

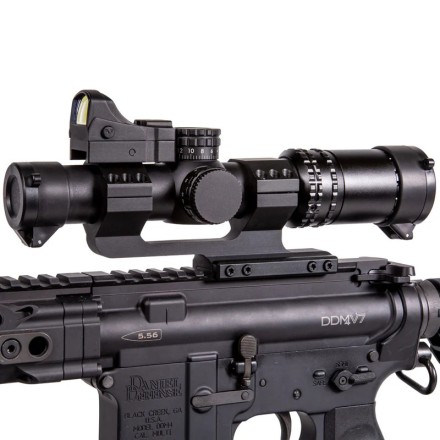

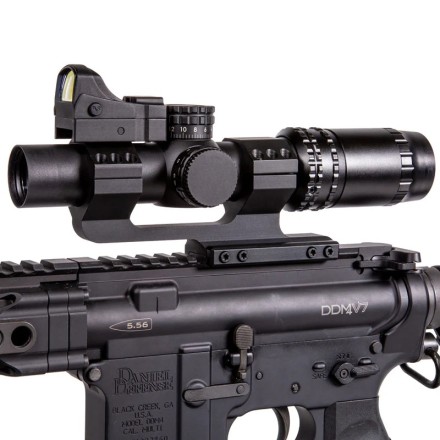

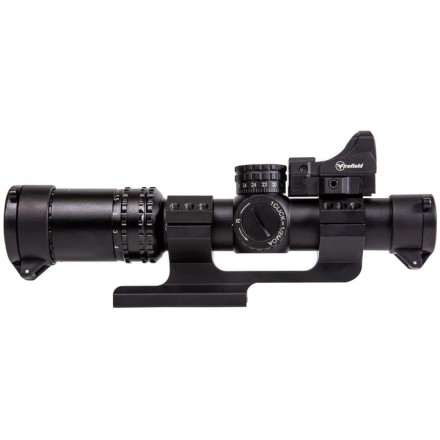

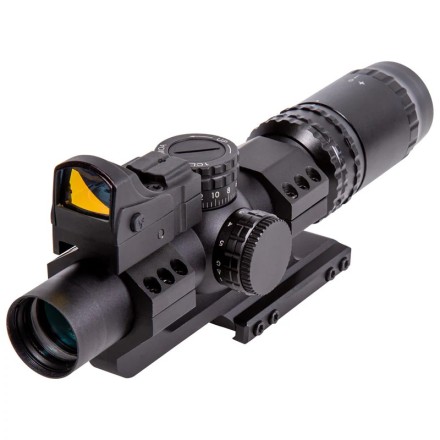

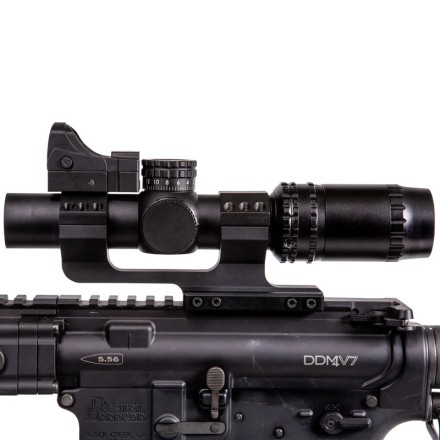

In addition to the Impact Mini reflex sight value, the RapidStrike 1-4 kit includes a cantilever mount, pop-up locking turrets, and a dual optic setup for close-to-medium range engagements.

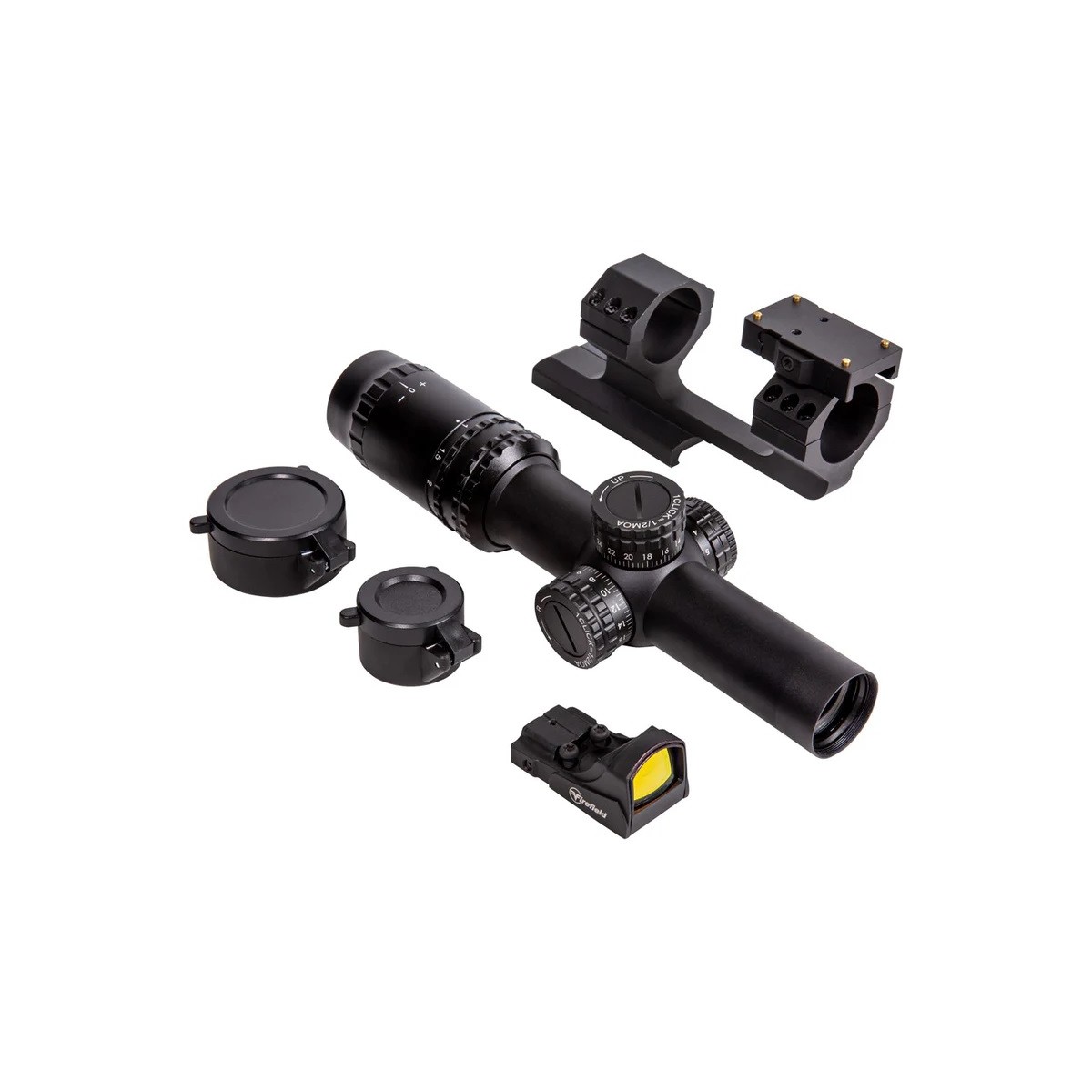

Included in Package
- Firefield Impact Mini Reflex Sight
- Cantilever mount
- Battery Used
- Type: CR1632
- Quantity: 1
- Product Downloads
- Product Manual
- Product Specifications
Features
- 1-4x Magnification
- Red or Green illuminated reticle
- 5 brightness settings
- 5 MOA Dot

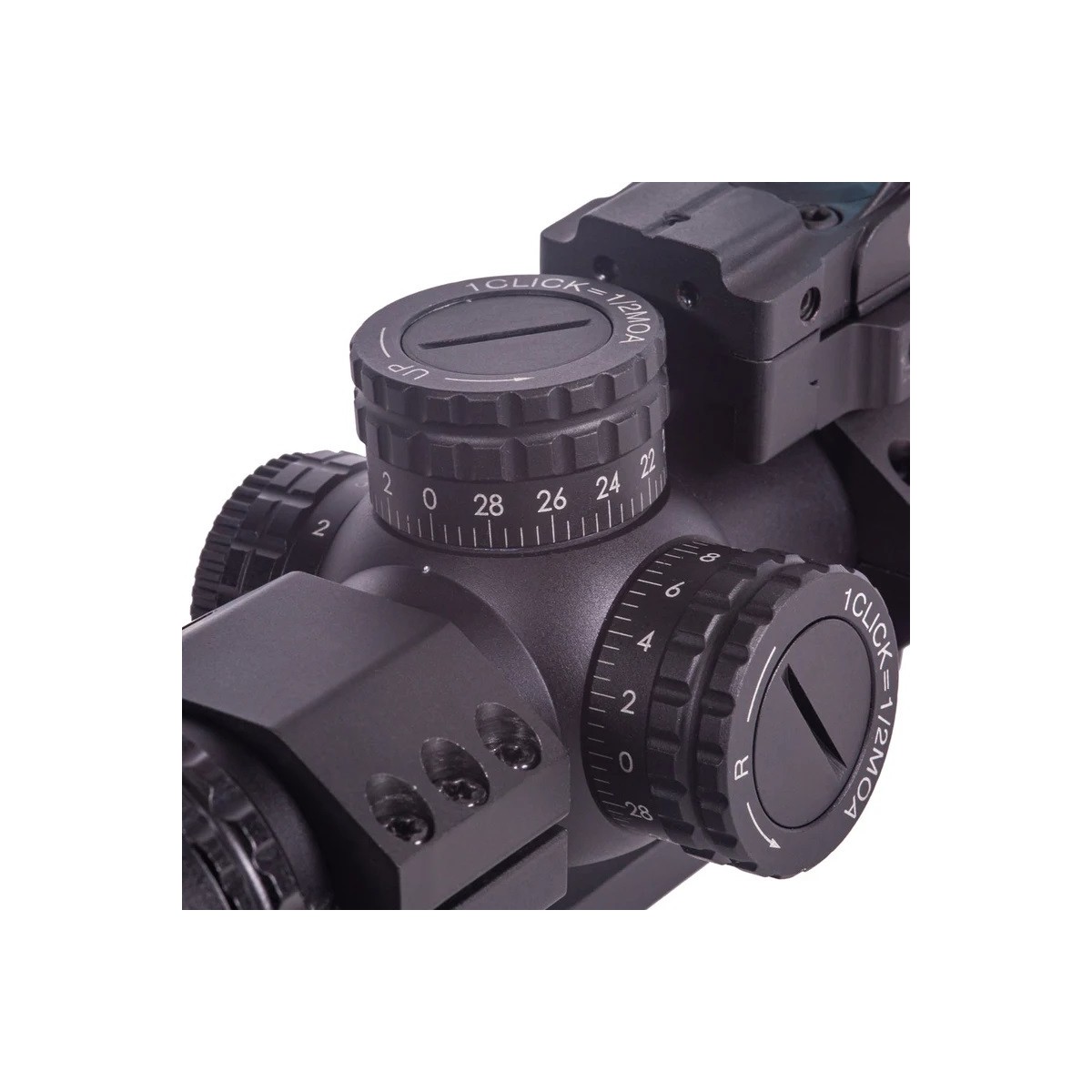

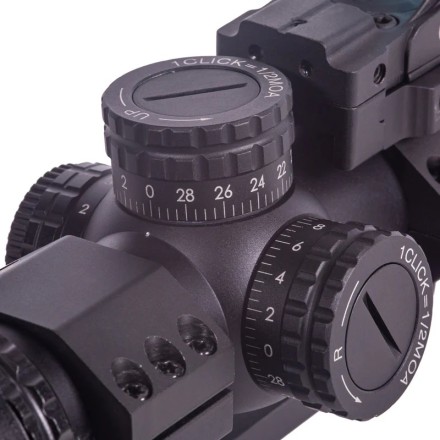

- Pop-up locking turrets

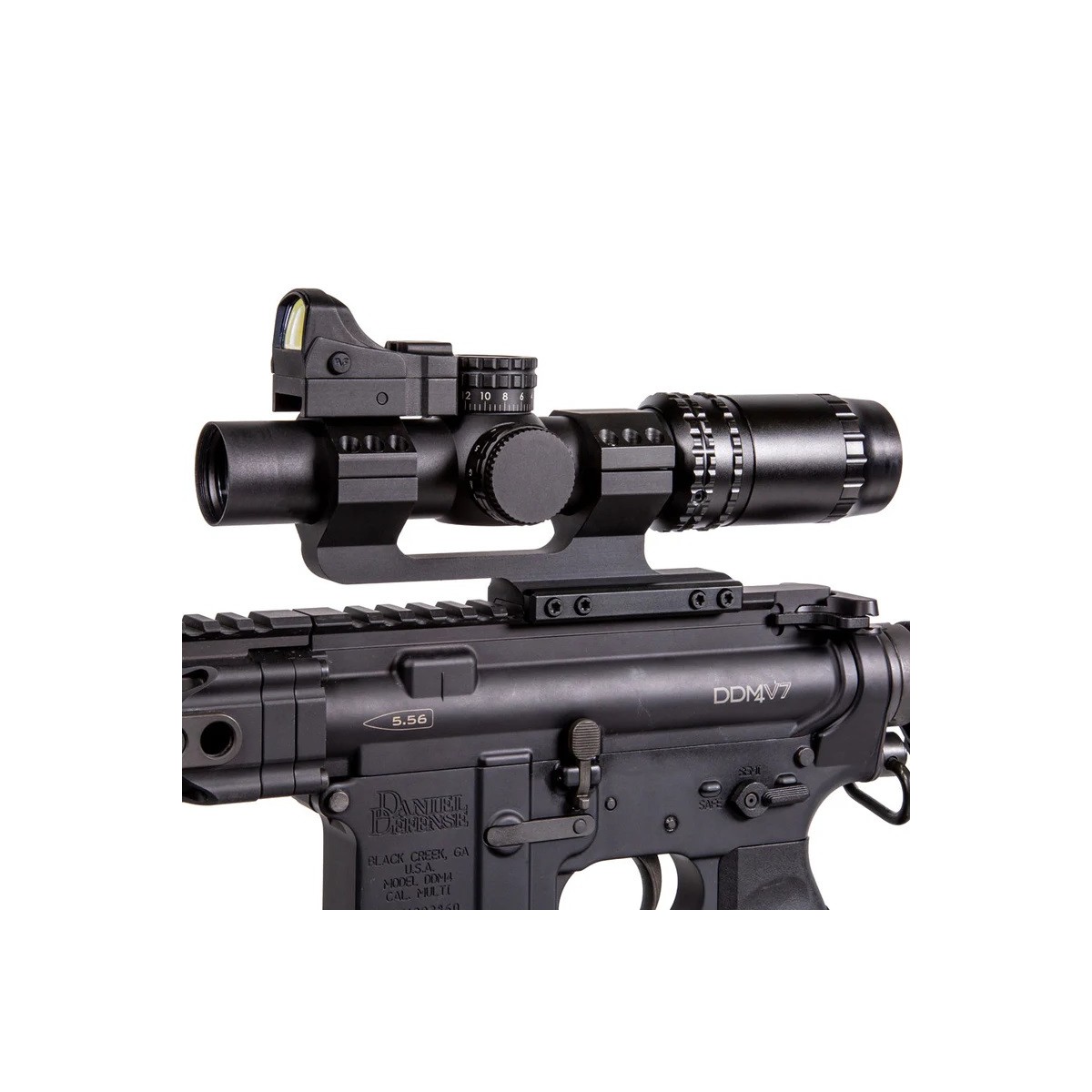

- Dual optic setup for close-to-medium range engagements
- Up to 200 hours of battery life
- Matte Black Finish
- IP67 rating – waterproof and dustproof

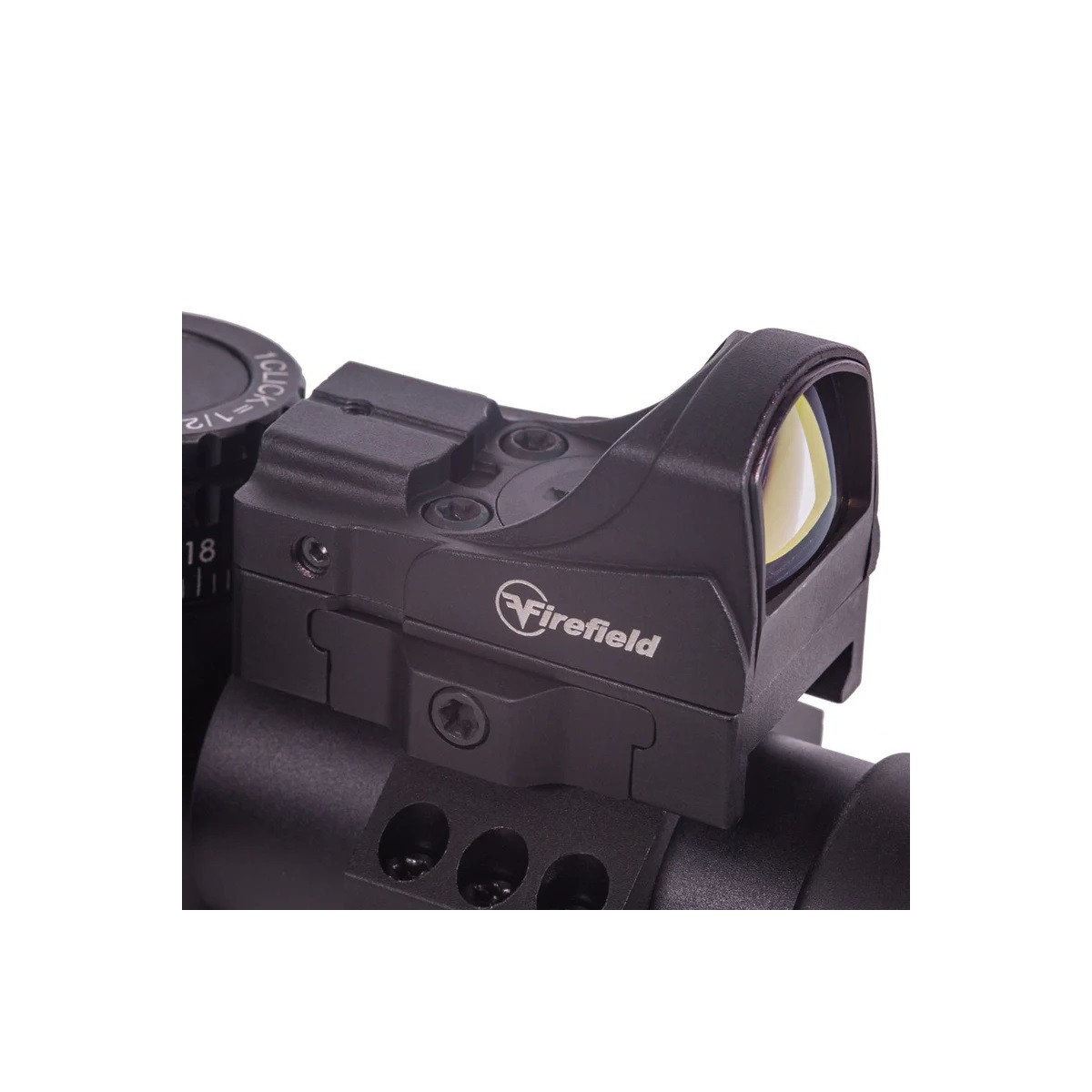

- Included Firefield Impact Mini Reflex Sight
- Included Cantilever Mount
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Reticle type Circle Dot
Reticle color red, green, and black
Illuminated (yes/no) yes
Reticle brightness settings 0-5
Finish/color Matte black
Magnification (x) 1-4
Objective lens diameter (mm) 24
Eyepiece diameter (in/mm) 1.65 / 42
Exit pupil diameter (in/mm) .55 - .2 / 14.15 - 4.8
Eye relief (in/mm) 3.98 / 101.2
Field of view (m @100m) 35.75 - 26.51
Field of view (ft @100yd) 107.3 - 24.24
Diopter adjustment (+/-) +2 to -2
Tube diameter (mm/in) 30mm
Parallax setting (yds) 100
Windage (MOA) 50
Elevation (MOA) 50
Windage & Elevation lock (yes/no) Yes
MOA adjustment (one click) 1/2 MOA
Maximum recoil (Caliber) .338
Battery type CR2032
Battery life (hours) 100
Battery voltage (V) 3V
Sunshade (yes/no) No
Nitrogen filled (yes/no) Yes
Shockproof (yes/no) Yes, 3ft
Fog proof (yes/no) Yes
Focal plane Second
IP Standard (water rating) IP67 - waterproof and dustproof
Body material Aluminum
Finish/color Matte black
Lens coatings Fully multi-coated
Operating temperature (°F/°C) -13 to 131 / -25 to 55
Length (in/mm) 8.86 / 225
Width (in/mm) 2.4 / 61
Height (in/mm) 1.9 / 47
Weight (oz/g) 13.86 / 393

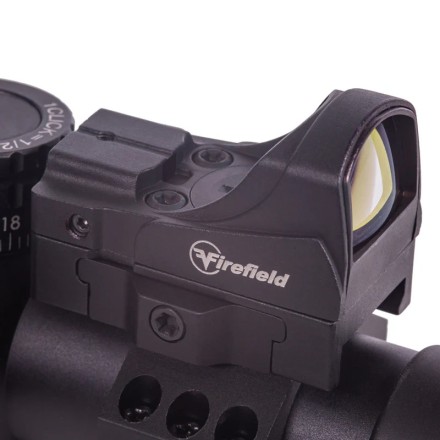

REFLEX SIGHT TECHNICAL SPECIFICATIONS
Reticle type 5 MOA Dot
Reticle color Red
Illuminated reticle (yes/no) Yes
Brightness settings 5
Magnification (x) 1x
Objective lens dimensions (mm) 16 x 21
Eye relief (in/mm) ∞
Elevation adjustment range (MOA) 120
Windage adjustment range (MOA) 120
Adjustment value (one click =) Continuous
Parallax setting 50 yd
Finish/color Black Anodized
Body material Aluminum
Maximum recoil (G's) 800
IP rating IP55
Nitrogen filled (yes/no) No
Shockproof (yes/no) Yes
Fogproof (yes/no) No
Lens Coatings AR Red
Mount type Weaver/Picatinny
Battery type CR1632
Battery life (hours) 40 Hours(On High)/200 Hours (On Low)
Battery voltage (V) 3v
Operating temperature (°F/°C) 0-120/-18-49
Length (in/mm) 1.9 / 49
Width (in/mm) 1.3 / 33
Height (in/mm) 1.42 / 36
Weight (oz.) 1.9
