Width: 35 mm / 1.38"
Length: 62 mm / 2.44"
Height: 26 mm / 1.02"
Weight: 180 grams / 6.35 oz
Muzzle thread: M14
Attachment: thread + clamp

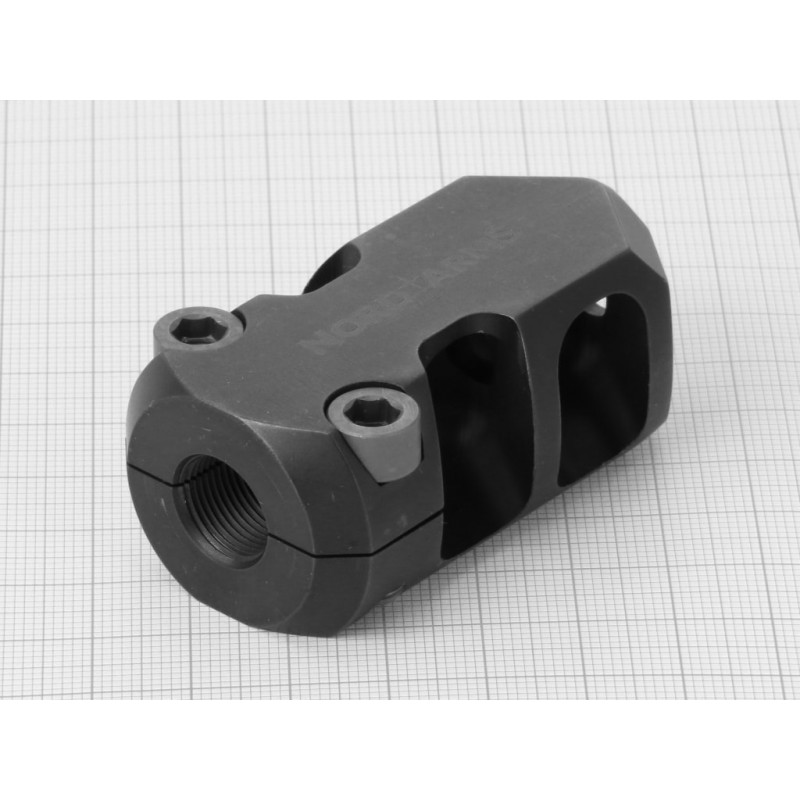

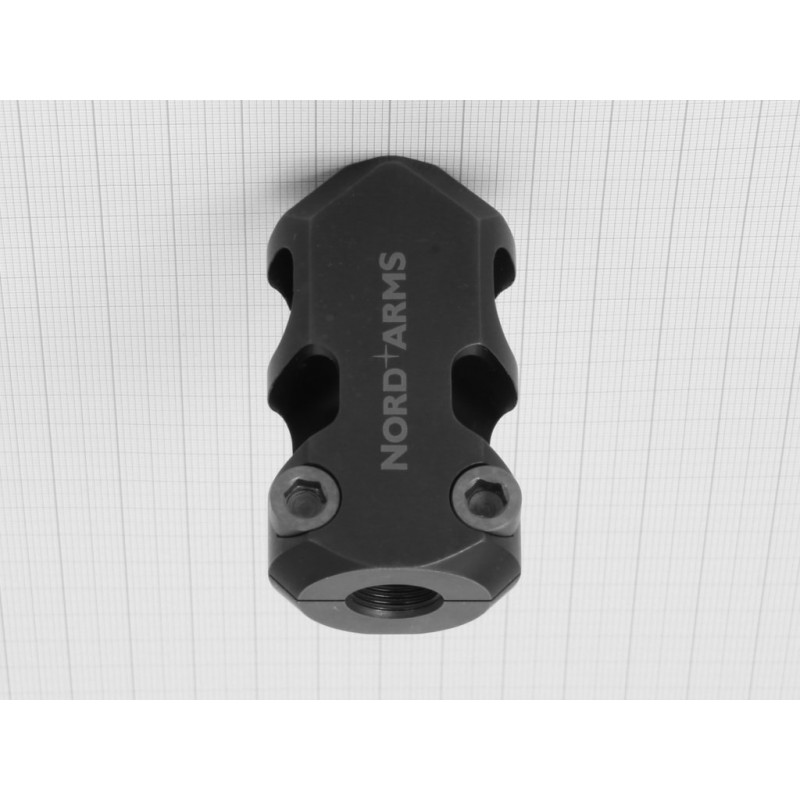

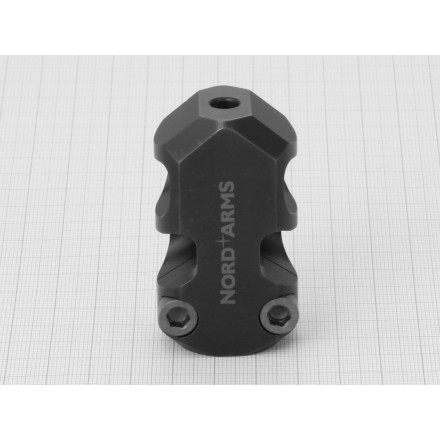

The muzzle brakes are designed to be highly effective in eliminating felt recoil and muzzle rise for quicker, more precise follow-up shots. Advanced geometry also minimizes flash signature. Made of extremely strong stainless steel and treated with QPQ nitriding for superior durability, heat and corrosion resistance, they outlive most of the barrels and competitors products. Bolts are made of extremely strong high grade titanium to reduce brake's overall weight. Professional workmanship guarantees perfect concentricity for maximum accuracy. Firm clamp attachment eliminates the need for crush washer and allows you to easily adjust the angle of the brake.

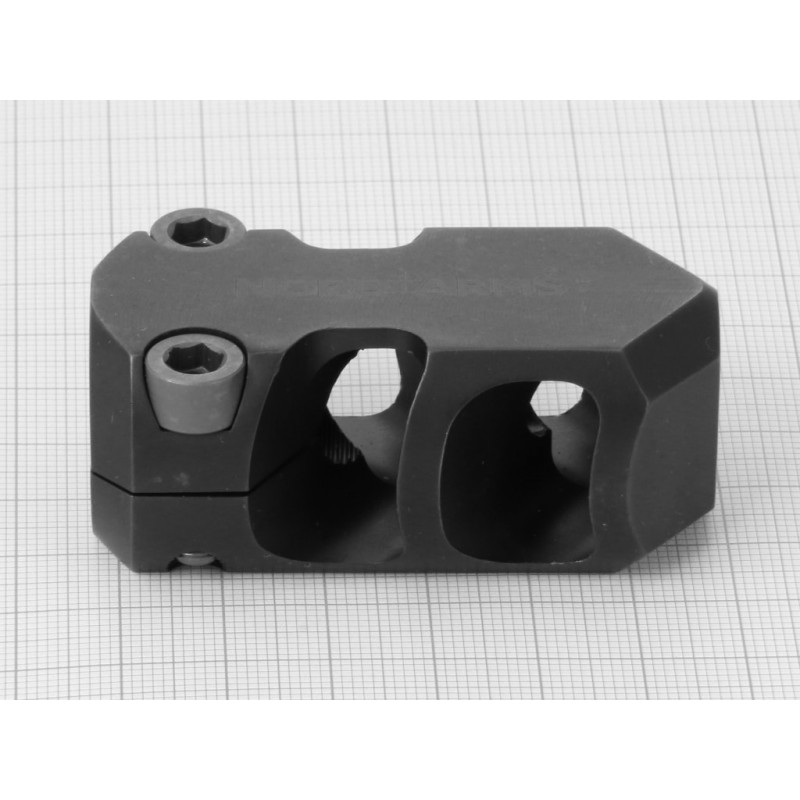

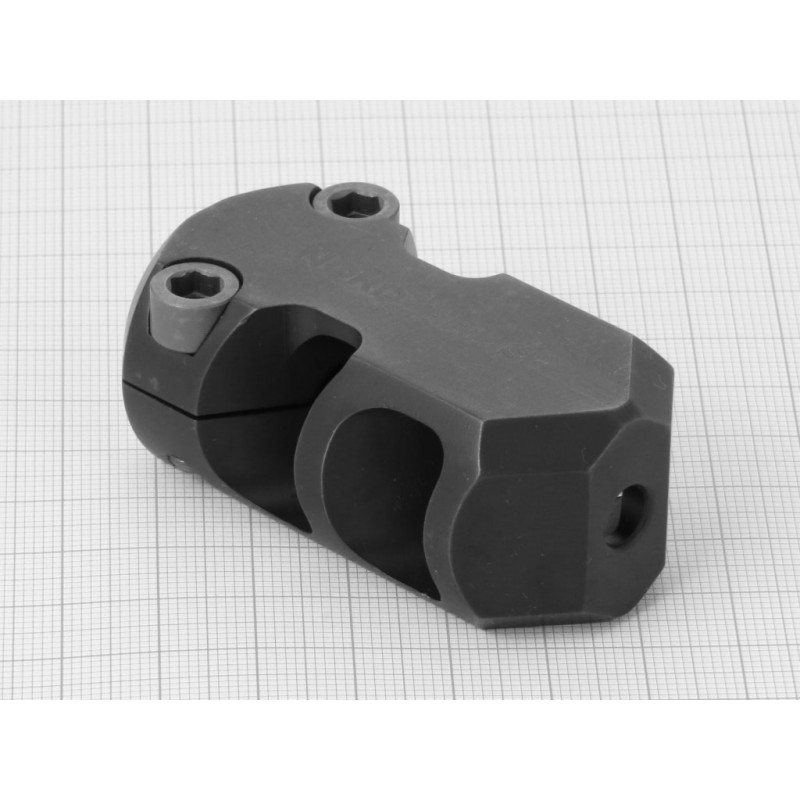

Large ports on the sides compensate for recoil while cuts on the top compensate for muzzle rise. Ports on the sides direct exhaust gases backwards, yet past the shooter. This provides far better compensation compared to directing gases directly sideways. The bottom of the brake is designed to minimize dust printing when shooting prone. As a bonus, the aggressive looks of the brake gives your rifle that extra touch.
Clamp attachment eliminates the need to use crush washer and allows you to easily adjust the angle of the brake.
If you are right-handed shooter and need more down thrust to your support hand, instead of installing that brake at an angle, you might want to try our asymmetrical brake NA-MB223-35CA instead.
The brake is designed to look equally good on all diameter barrels. Suitable for bullet diameters up to 5.6 mm, most effective starting from 4.4 mm. To maintain its durability, modifying it to accommodate larger diameter bullets is not recommended.
