Width: 29.9 mm / 1.18"
Total length: 67 mm / 2.64"
Length added to the barrel: 50 mm / 1.97"
Height: 25 mm / 0.98"
Weight: 112 grams / 3.95 oz (brake) + 2 grams / 0.07 oz (crush washer)
Muzzle thread: 1/2 x 28 TPI
Attachment: thread

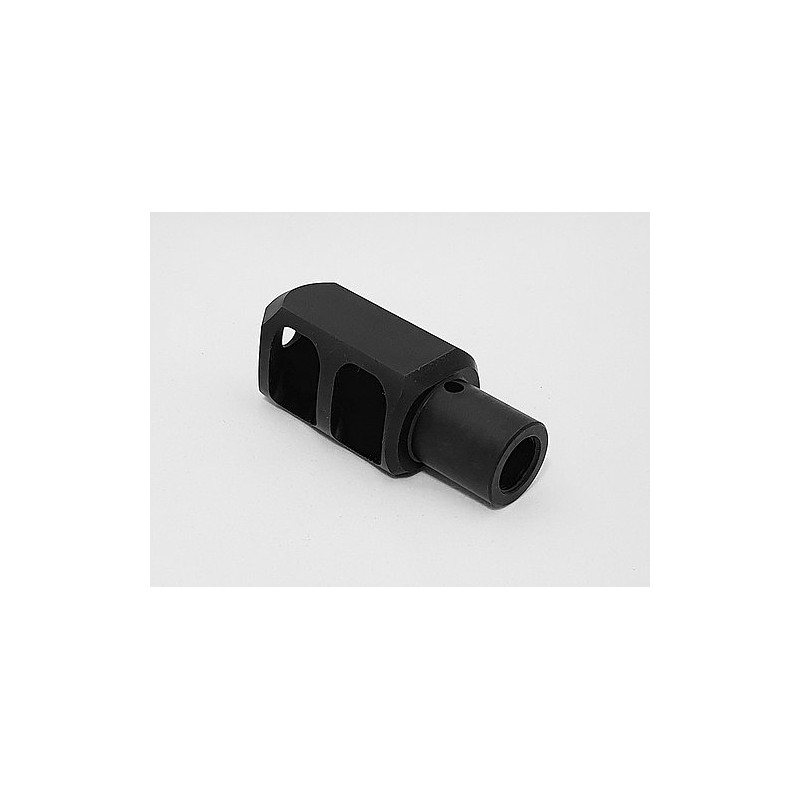

The muzzle brakes are designed to be highly effective in eliminating felt recoil and muzzle rise for quicker, more precise follow-up shots. Advanced geometry also minimizes flash signature. Made of extremely strong stainless steel and treated with QPQ nitriding for superior durability, heat and corrosion resistance, they outlive most of the barrels and competitors products. Professional workmanship guarantees perfect concentricity for maximum accuracy.

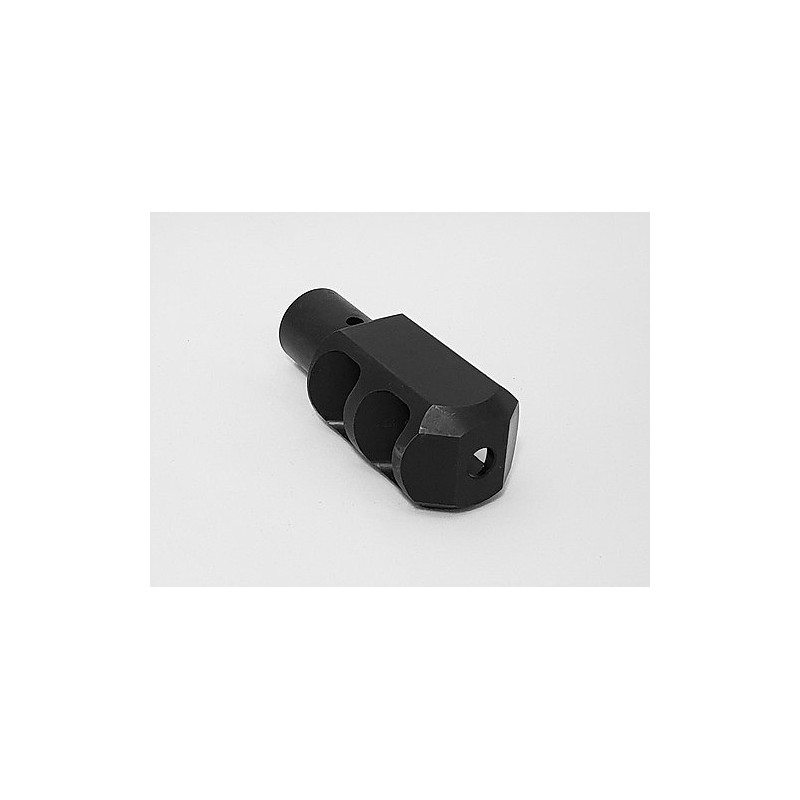

Large ports on the sides compensate for recoil while hole on the top compensates for muzzle rise. Hole on the right compensates for rifle movement to the right. Ports on the sides direct exhaust gases backwards, yet past the shooter. This provides far better compensation compared to directing gases directly sideways. The bottom of the brake is designed to minimize dust printing when shooting prone. As a bonus, the aggressive looks of the brake gives your rifle that extra touch.
The brake is designed to look equally good on all diameter barrels. Suitable for bullet diameters up to 5.6 mm, most effective starting from 4.4 mm. To maintain its durability, modifying it to accommodate larger diameter bullets is not recommended.
Holes can be drilled larger, extra durable drill is needed.

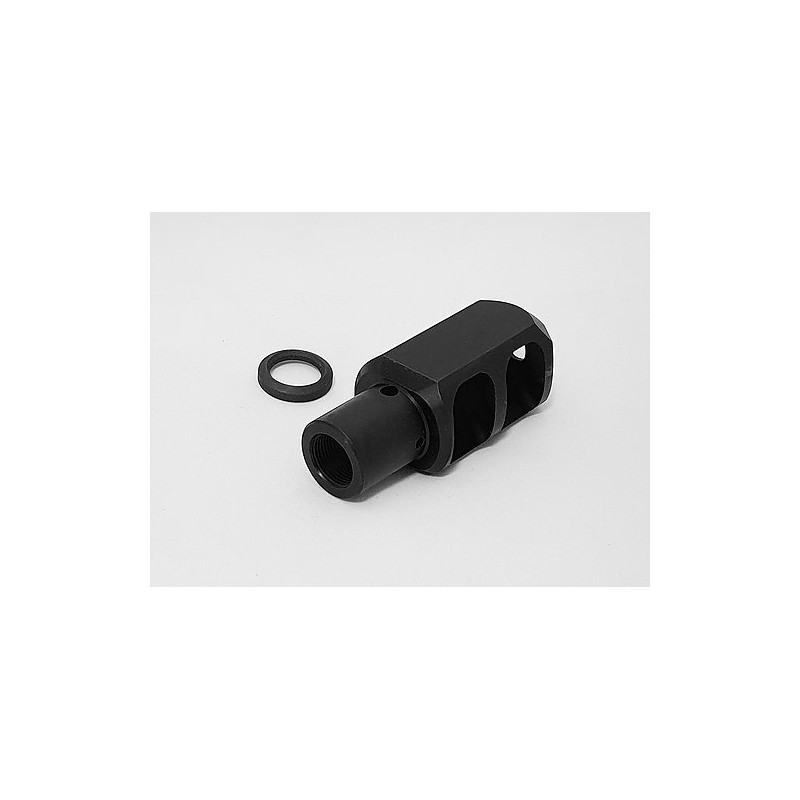

Crush washer included.
